ENTUBE Z (300V 200MV)
ActiveVerivolt LLC
TRANSDUCER VOLTAGE DIVIDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

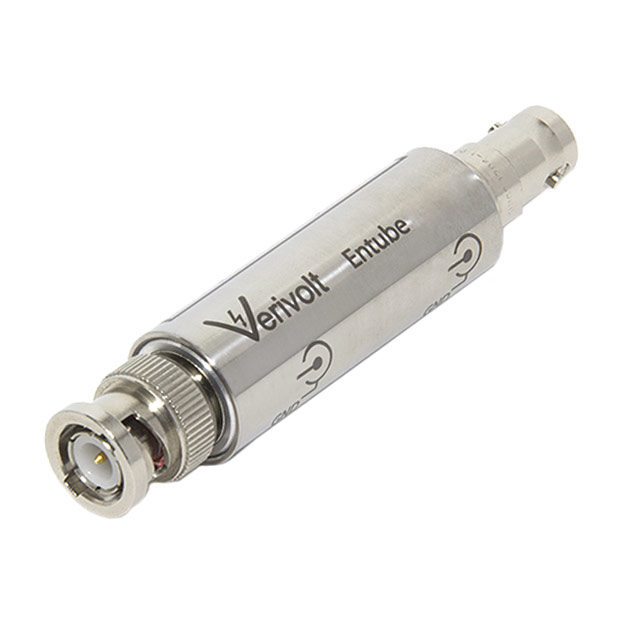

ENTUBE Z (300V 200MV)
ActiveVerivolt LLC
TRANSDUCER VOLTAGE DIVIDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ENTUBE Z (300V 200MV) | ENTUBE Z Series |
|---|---|---|
| Accuracy | 0.2 % | 0.2 % |
| Input Range | 300 V | 50 - 5000 V |
| Input Range | - | -1000 - -500 V |
| Input Range | - | 500 - 1000 V |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Output | 200 mV | 1 - 200 mV |
| Response Time | 8 ns | 8 ns |
| Termination Style | BNC | BNC, SHV |
| Type | Voltage Transducer | Voltage Transducer |
ENTUBE Z Series
TRANSDUCER VOLTAGE DIVIDER
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Response Time | Termination Style | Input Range | Type | Accuracy | Output | Input Range [Min] | Input Range [Max] |
|---|---|---|---|---|---|---|---|---|---|---|
Verivolt LLC ENTUBE Z (5000V 200MV) | 70 °C | -25 °C | 8 ns | BNC, SHV | 5000 V | Voltage Transducer | 0.2 % | 200 mV | ||
Verivolt LLC ENTUBE Z (2000V 200MV) | 70 °C | -25 °C | 8 ns | BNC, SHV | 2000 V | Voltage Transducer | 0.2 % | 200 mV | ||
Verivolt LLC ENTUBE Z (500V 1V) | 70 °C | -25 °C | 8 ns | BNC | Voltage Transducer | 0.2 % | 1 V | -500 V | 500 V | |
Verivolt LLC ENTUBE Z (3000V 1V) | 70 °C | -25 °C | 8 ns | BNC, SHV | 3000 V | Voltage Transducer | 0.2 % | 1 V | ||
Verivolt LLC ENTUBE Z (2000V 1V) | 70 °C | -25 °C | 8 ns | BNC, SHV | 2000 V | Voltage Transducer | 0.2 % | 1 V | ||
Verivolt LLC ENTUBE Z (50V 200MV) | 70 °C | -25 °C | 8 ns | BNC | 50 V | Voltage Transducer | 0.2 % | 200 mV | ||
Verivolt LLC ENTUBE Z (1000V 200MV) | 70 °C | -25 °C | 8 ns | BNC, SHV | Voltage Transducer | 0.2 % | 200 mV | -1000 V | 1000 V | |
Verivolt LLC ENTUBE Z (300V 200MV) | 70 °C | -25 °C | 8 ns | BNC | 300 V | Voltage Transducer | 0.2 % | 200 mV | ||
Verivolt LLC ENTUBE Z (750V 200MV) | 70 °C | -25 °C | 8 ns | BNC, SHV | 750 V | Voltage Transducer | 0.2 % | 200 mV | ||
Verivolt LLC ENTUBE Z (2000V 2V) | 70 °C | -25 °C | 8 ns | BNC, SHV | 2000 V | Voltage Transducer | 0.2 % | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 521.77 | |
Description
General part information
ENTUBE Z Series
Voltage Transducer ±300V Input ±200mV Output
Documents
Technical documentation and resources
