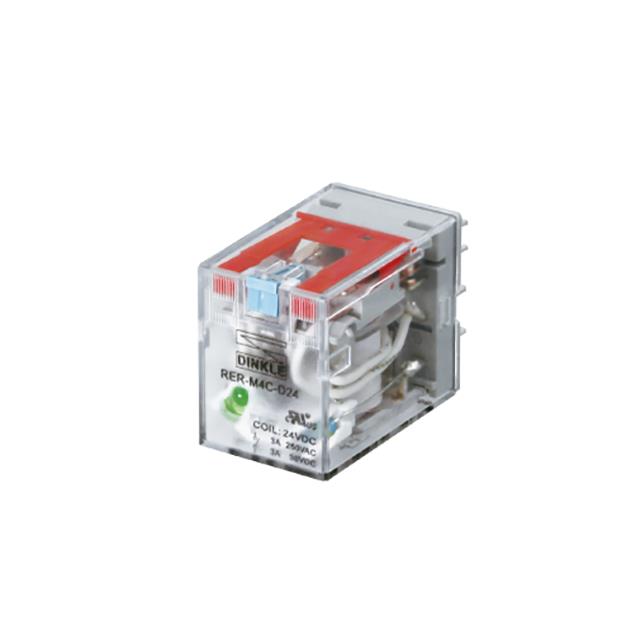

RER-M4C-D24

Active

Dinkle Corporation, USA

RELAY GEN PURPOSE SPDT 3A 24V

Search across all available documentation for this part.

Active

Dinkle Corporation, USA

RELAY GEN PURPOSE SPDT 3A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY GEN PURPOSE SPDT 3A 24V

Part	Coil Current	Must Operate Voltage	Coil Type	Features	Contact Rating (Current)	Release Time	Mounting Type	Coil Resistance	Contact Material	Operate Time	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form	Must Release Voltage	Coil Voltage	Relay Type	Switching Voltage [Max]
Dinkle Corporation, USA RER-M4C-D24	36.9 mA	18 VDC	Non Latching	Lighted Indicator	3 A	20 ms	Socketable	640 Ohms	Silver Nickel (AgNi)	20 ms	70 °C	-55 °C	4PDT (4 Form C)	2.4 VDC	24 VDC	General Purpose	30 VDC, 250 VAC
Dinkle Corporation, USA RER-M4C-A120	9.2 mA	96 VAC	Non Latching	Lighted Indicator	3 A	20 ms	Socketable	4.43 kOhms	Silver Nickel (AgNi)	20 ms	70 °C	-55 °C	4PDT (4 Form C)	36 VAC	120 VAC	General Purpose	30 VDC, 250 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay 4PDT (4 Form C) 24VDC Coil Socketable

Technical documentation and resources

No documents available
