SN232
ActiveComet America, LP
PT1000TG68/0, TEMP PROBE,2 M
SN232
ActiveComet America, LP
PT1000TG68/0, TEMP PROBE,2 M
Description
General part information
SN232

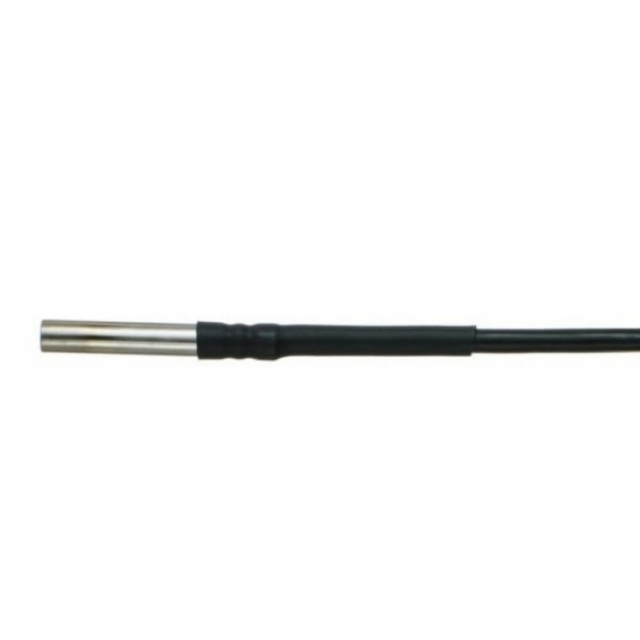

Pt1000 Temperature Sensor -50°C ~ 200°C Non-Grounded Exposed Lead Wires
Technical Specifications
Parameters and characteristics for this part
| Specification | SN232 |
|---|---|
| Conductor Type | Non-Grounded |
| Diameter - Protective Tube | 6 mm |
| Element Type | Pt1000 |
| Length - Lead Wire | 6.562 ft |
| Length - Protective Tube | 60 mm |
| Temperature Range (Max) | 200 °C |
| Temperature Range (Min) | -58 °F |
| Terminal Type | Exposed Lead Wires |
