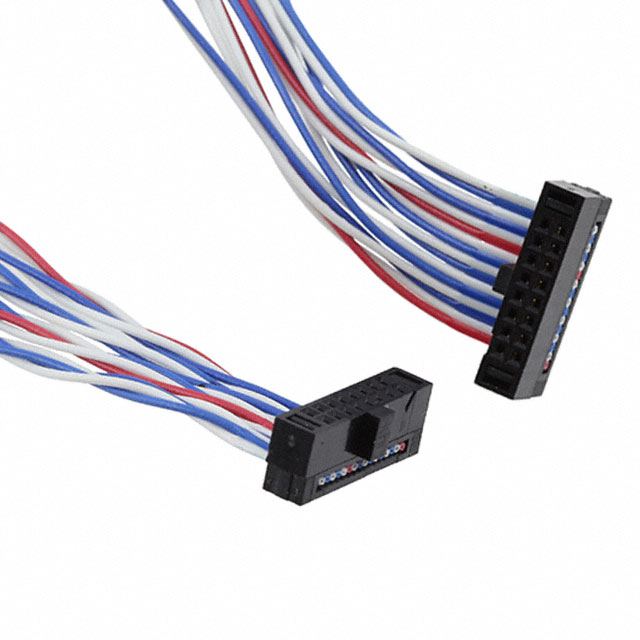

FFTP-08-D-18.00-01-N
ActiveSamtec Inc.
.050 X .050 C/L TWISTED PAIR FEM
Deep-Dive with AI
Search across all available documentation for this part.
FFTP-08-D-18.00-01-N
ActiveSamtec Inc.
.050 X .050 C/L TWISTED PAIR FEM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FFTP-08-D-18.00-01-N |
|---|---|
| Cable Termination | IDC |
| Color | Multiple, Twisted Pair (Round) |
| Connector Type | Socket to Socket |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Features | Polarizing Key |
| Length [x] | 457.2 mm |
| Length [x] | 1.5 ft |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Pitch - Cable | 0.64 mm |
| Pitch - Cable [x] | 0.025 in |
| Pitch - Connector | 0.05 in |
| Pitch - Connector | 1.27 mm |
| Shielding | Unshielded |
FFTP-08 Series
| Part | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Cable Termination | Connector Type | Features | Pitch - Connector | Pitch - Connector | Length [x] | Length [x] | Color | Number of Positions | Shielding | Contact Finish | Pitch - Cable [x] | Pitch - Cable | Length | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | 10 Áin | 0.25 Ám | 2 | IDC | Socket to Socket Reversed | Polarizing Key | 0.05 in | 1.27 mm | 457.2 mm | 1.5 ft | Multiple Twisted Pair (Round) | 16 | Unshielded | Gold | 0.025 in | 0.64 mm | |||
Samtec Inc. | 10 Áin | 0.25 Ám | 2 | IDC | Socket to Socket | Polarizing Key | 0.05 in | 1.27 mm | Multiple Twisted Pair (Round) | 16 | Unshielded | Gold | 0.025 in | 0.64 mm | 3.85 " | 0.321 ' | 97.79 mm | ||
Samtec Inc. | 10 Áin | 0.25 Ám | 2 | IDC | Socket to Socket | Polarizing Key | 0.05 in | 1.27 mm | Multiple Twisted Pair (Round) | 16 | Unshielded | Gold | 0.025 in | 0.64 mm | 8.77 in | 0.731 ft | 222.76 mm | ||
Samtec Inc. | 10 Áin | 0.25 Ám | 2 | IDC | Socket to Socket | Polarizing Key | 0.05 in | 1.27 mm | Multiple Twisted Pair (Round) | 16 | Unshielded | Gold | 0.025 in | 0.64 mm | 8.77 in | 0.731 ft | 222.76 mm | ||
Samtec Inc. | 10 Áin | 0.25 Ám | 2 | IDC | Socket to Socket | Polarizing Key | 0.05 in | 1.27 mm | 457.2 mm | 1.5 ft | Multiple Twisted Pair (Round) | 16 | Unshielded | Gold | 0.025 in | 0.64 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 25.86 | |
| 10 | $ 19.98 | |||
| 25 | $ 19.14 | |||
Description
General part information
FFTP-08 Series
16 Position Cable Assembly Rectangular Socket to Socket 1.50' (457.20mm)
