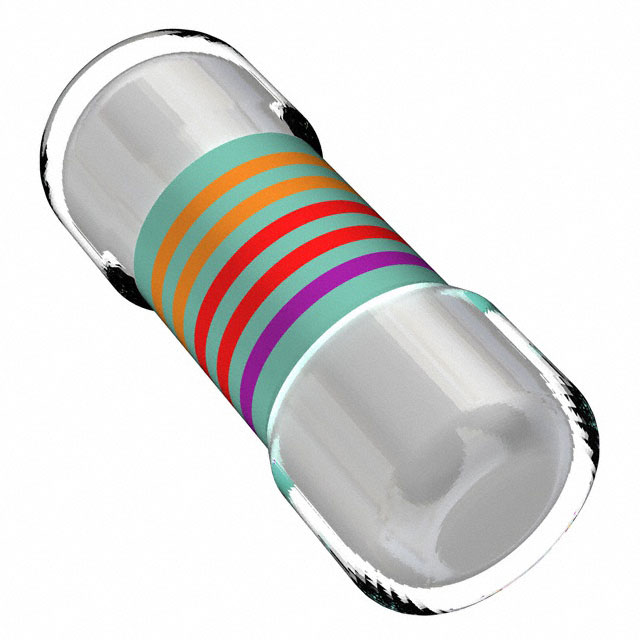

MLF12BTE33K2
ActiveStackpole Electronics Inc
RES 33.2KOHM 0.1% 1/2W MELF 0207
MLF12BTE33K2
ActiveStackpole Electronics Inc
RES 33.2KOHM 0.1% 1/2W MELF 0207
Description
General part information
MLF12BTE33K2
33.2 kOhms ±0.1% 0.5W, 1/2W Chip Resistor MELF, 0207 Thin Film
Technical Specifications
Parameters and characteristics for this part
| Specification | MLF12BTE33K2 |
|---|---|
| Composition | Thin Film |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0207, MELF |
| Package Name | 0207 |
| Power (Watts) | 500 mW |
| Power (Watts) Options | 1/2W |
| Resistance | 33.2 kOhm |
| Size / Dimension Diameter | 0.087 in |
| Size / Dimension Length | 0.232 in |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 0.1 % |
