3-100143-0
ActiveTE Connectivity AMP Connectors

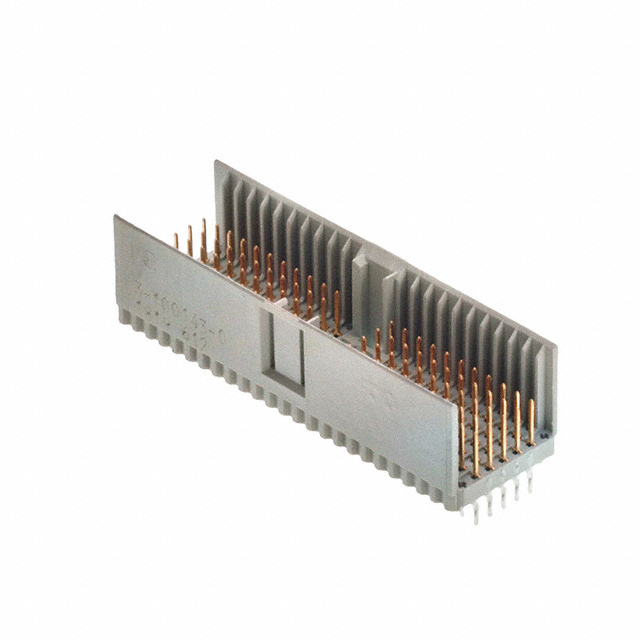

CONN HEADER 110POS 2MM PRESS-FIT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3-100143-0
ActiveTE Connectivity AMP Connectors
CONN HEADER 110POS 2MM PRESS-FIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-100143-0 |
|---|---|
| Connector Style | A 22 |
| Connector Type | Header, Male Pins |
| Connector Usage | Backplane |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Current Rating (Amps) | 1.5 A |
| Features | Board Guide |
| Mounting Type | Through Hole |
| Number of Positions | 110 positions |
| Number of Positions Loaded | All |
| Number of Rows | 5 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Termination | Press-Fit |
| Voltage Rating | 500 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.10 | |
| 10 | $ 7.33 | |||
| 30 | $ 7.13 | |||
| 50 | $ 6.86 | |||
| 100 | $ 6.82 | |||
100143 Series
CONN HEADER 110POS 2MM PRESS-FIT
| Part | Pitch [x] | Pitch [x] | Termination | Contact Finish | Current Rating (Amps) | Connector Type | Features | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Voltage Rating | Connector Style | Connector Usage | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 3-100143-0 | 0.079 in | 2 mm | Press-Fit | Gold | 1.5 A | Header, Male Pins | Board Guide | 0.76 Ám | 30 Áin | Through Hole | 500 VAC | A 22 | Backplane | All | -55 °C | 125 °C | 110 positions | 5 |
Description
General part information
100143 Series
110 Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole
