8768A325-1
ActiveKanebridge

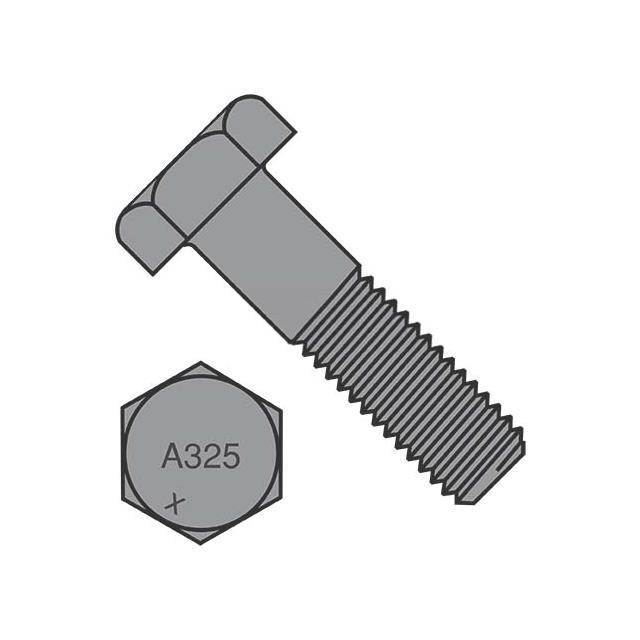

HEAVY STRUCTURAL BOLT - HEX HEAD
8768A325-1
ActiveKanebridge
HEAVY STRUCTURAL BOLT - HEX HEAD
Description
General part information
8768A325-1
7/8"-9 Hex Head Structural Bolt External Hex Drive Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 8768A325-1 |
|---|---|
| Drive Type | External Hex, Hex Socket |
| Features | Standard |
| Head Diameter | 1.438 in |
| Head Height | 0.547 in |
| Length - Below Head | 4.25 in |
| Length - Overall | 4.797 in |
| Material | Steel |
| Plating | Plain |
| Screw Head Type | Hex Head |
| Thread Pitch (TPI) | 9 TPI |
| Thread Size (Nominal) | 0.875 in |
| Type | Structural Bolt |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
