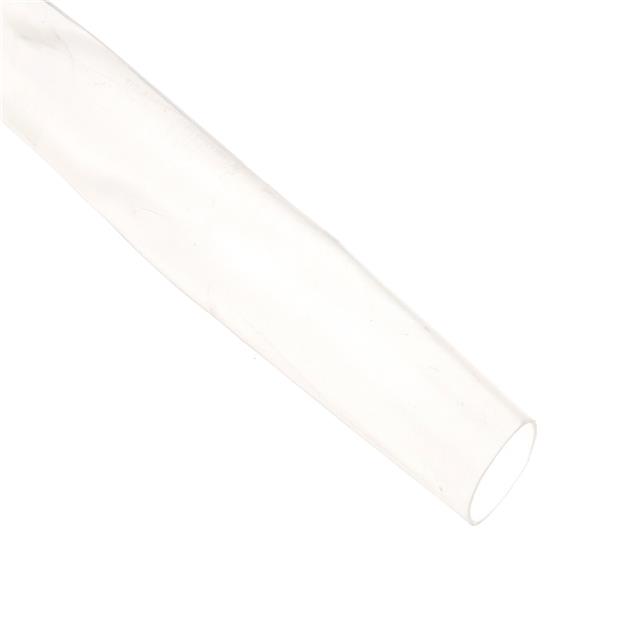

A2 3/16 CLEAR SPL

Active

Sumitomo Electric Interconnect Products, Inc.

HEATSHRINK 3/16" CLEAR FOOT

Search across all available documentation for this part.

Active

Sumitomo Electric Interconnect Products, Inc.

HEATSHRINK 3/16" CLEAR FOOT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A2 3/16 CLEAR SPL	A2 3/16 Series

Color	Clear	Clear
Inner Diameter - Recovered	2.4 mm	2.36 - 2.4 mm
Inner Diameter - Recovered	0.094 in	0.093 - 0.094 in
Inner Diameter - Supplied [diameter]	5.21 mm	4.75 - 5.21 mm
Inner Diameter - Supplied [diameter]	0.205 in	0.187 - 0.205 in
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Length	-	1.22 m
Length	-	4 ft
Material	Polyolefin (PO), Irradiated, Halogen Free	Halogen Free, Polyolefin (PO), Polyolefin (PO), Irradiated, Halogen Free
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness	0.02 in	0.02 in
Recovered Wall Thickness	0.51 mm	0.51 mm
Shrink Temperature	110 °C	110 °C
Shrinkage Ratio	2 to 1	2 to 1
Spool Size	61 m	61 m
Spool Size	200 '	200 '
Type	Tubing, Flexible	Tubing, Flexible

SUMITUBE A2 - HEAT-SHRINK 1=1PC

Part	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Shrink Temperature	Inner Diameter - Recovered	Inner Diameter - Recovered	Type	Material	Color	Operating Temperature [Max]	Operating Temperature [Min]	Shrinkage Ratio	Length [x]	Length [x]	Spool Size	Spool Size	Length
Sumitomo Electric Interconnect Products, Inc. A2 3/16 CLEAR 4FT	4.75 mm	0.187 in	0.02 in	0.51 mm	110 °C	2.36 mm	0.093 in	Tubing, Flexible	Halogen Free, Polyolefin (PO)	Clear	135 °C	-55 °C	2 to 1	1.22 m	4 ft
Sumitomo Electric Interconnect Products, Inc. A2 3/16 CLEAR SPL	5.21 mm	0.205 in	0.02 in	0.51 mm	110 °C	2.4 mm	0.094 in	Tubing, Flexible	Polyolefin (PO), Irradiated, Halogen Free	Clear	135 °C	-55 °C	2 to 1			61 m	200 '	Enter Number of Feet in Order Quantity

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 0.205" (5.21mm) 2 to 1 Clear Enter Number of Feet in Order Quantity
