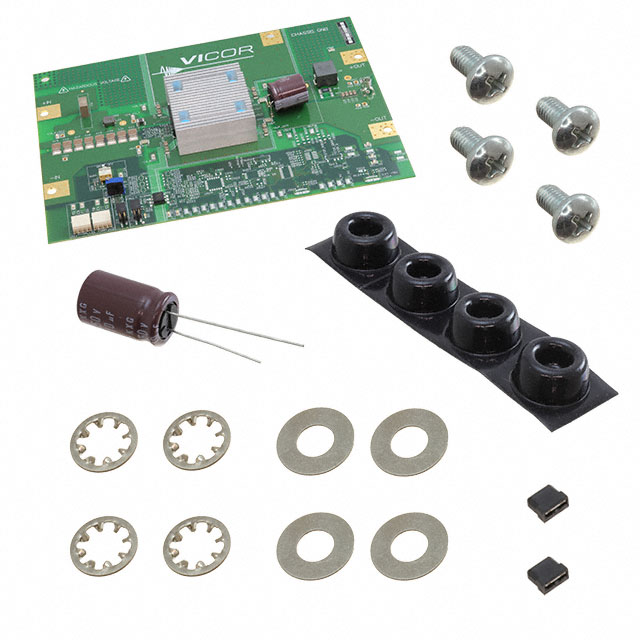

Specification	DCM4623EC8G16F0T00

Board Type	Fully Populated
Contents	Board
Current - Output	43.5 A
Isolated Output Count	1
Main Purpose	DC/DC, Step Down
Output Type	Isolated
Power - Output	600 W
Regulator Topology	Buck
Supplied Contents	Board(s)
Total Output Count	1
Utilized IC / Part	DCM4623xC8G16F0yzz
Voltage - Input (Maximum)	420 V
Voltage - Input (Minimum)	160 V
Voltage - Output	13.8 V

DCM4623 Series

...

Part	Efficiency	Current - Output (Max)	Mounting Type	Type	Voltage - Output 1	Approval Agency	Operating Temperature (Max)	Operating Temperature (Min)	Standard Number	Voltage - Input (Min)	Package / Case	Applications	Power (Watts)	Number of Outputs	Voltage - Isolation	Voltage - Input (Max)	Features	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Board Type	Supplied Contents	Total Output Count	Output Type	Isolated Output Count	Power - Output	Current - Output	Regulator Topology	Main Purpose	Utilized IC / Part	Contents	Voltage - Output	Voltage - Input (Minimum)	Voltage - Input (Maximum)
Vicor Corporation DCM4623TD2N06A9T00	89.3 %	38 A	Through Hole	Isolated Module	5 V	CE cTUVus cURus	125 °C	-40 °C	60950-1	120 V	9-DIP Module	ITE (Commercial)	190 W	1	4242 V	420 V	Adjustable Output	1.89 in	0.28 in	0.9 in
Vicor Corporation DCM4623TD2H26F0T70	93.6 %	25 A	Through Hole	Isolated Module	24 V	CE cTUVus cURus	125 °C	-40 °C	60950-1	200 VAC	9-DIP Module	ITE (Commercial)	600 W	1	4242 V	420 V	Adjustable Output Remote Sense	1.89 in	0.28 in	0.9 in
Vicor Corporation DCM4623ED2N13C8T00																					Fully Populated	Board(s)	1	Isolated	1	375 W	31.3 A	Buck	DC/DC Step Down	DCM4623xD2N13C8yzz	Board	12 V	120 V	420 V
Vicor Corporation DCM4623TD2N13C8M70
Vicor Corporation DCM4623ED2N31C8T00																							1	Isolated	1	375 W	13.4 A	Buck	DC/DC Step Down	DCM4623xD2N31C8yzz	Board	28 V	120 V	420 V
Vicor Corporation DCM4623ED2N17C8T70																							1	Isolated	1	375 W	25 A	Buck	DC/DC Step Down	DCM4623xD2N17C8yzz	Board	15 V	120 V	420 V
Vicor Corporation DCM4623TD2K31E0T00	93.9 %	17.86 A	Through Hole	Isolated Module	28 V		125 °C	-40 °C		160 V	9-DIP Module	ITE (Commercial)	500 W	1	4242 V	420 V	OCP OTP OVP Remote On/Off SCP UVLO	1.89 in	0.29 in	0.9 in
Vicor Corporation DCM4623ED2K17E0M70																					Fully Populated	Board(s)	1	Isolated	1	500 W	33.4 A	Buck	DC/DC Step Down	DCM4623xD2K17E0yzz	Board	15 V	160 V	420 V
Vicor Corporation DCM4623ED2N26C8T70																					Fully Populated	Board(s)	1	Isolated	1	375 W	15.7 A	Buck	DC/DC Step Down	DCM4623xD2N26C8yzz	Board	24 V	120 V	420 V
Vicor Corporation DCM4623TC8G16F0T00	93 %	43.5 A	Through Hole	Isolated Module	13.8 V		125 °C	-40 °C		200 VAC	9-DIP Module	ITE (Commercial)	600.3 W	1	4242 V	378 V	OCP OTP OVP SCP UVLO	1.89 in	0.29 in	0.9 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

DCM4623EC8G16F0T00 | Datasheet
