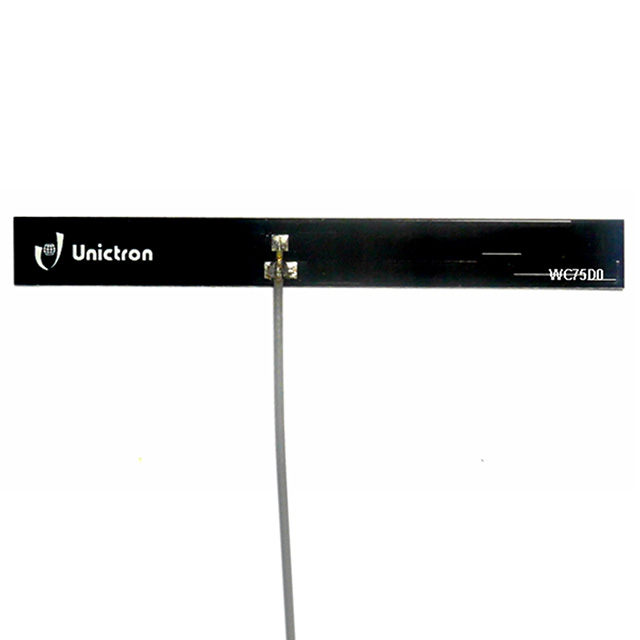

H2B4KF1F1N0200
ActiveUnictron Technologies Corporation
GSM 3G 824-960 1710-2170 MHZ FPC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H2B4KF1F1N0200
ActiveUnictron Technologies Corporation
GSM 3G 824-960 1710-2170 MHZ FPC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H2B4KF1F1N0200 |
|---|---|
| Antenna Type | PCB Trace |
| Applications | GSM, 3G |
| Features | Cable |
| Features | 100 mm |
| Frequency (Center/Band) | 892 MHz, 1.94 GHz |
| Frequency Range [Max] | 960 MHz, 2.17 GHz |
| Frequency Range [Min] | 1.71 GHz, 824 MHz |
| Gain | 0.8 dBi, 2.7 dBi |
| Height (Max) | 0.15 mm |
| Height (Max) [Max] | 0.006 in |
| Mounting Type | Surface Mount |
| Number of Bands | 2 |
| RF Family/Standard | Cellular |
| Termination | IPEX MHF1, U.FL (UMCC) |
| VSWR | 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2000 | $ 1.49 | |
Description
General part information
H2B4KF1 Series
RF ANTENNA 3G, GSM PCB Trace U.FL (UMCC), IPEX MHF1 Surface Mount
