1375875-1
ActiveTE Connectivity AMP Connectors

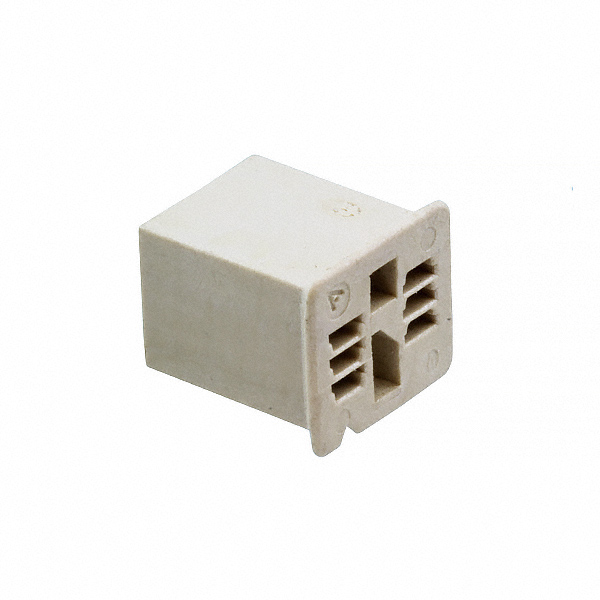

CONN PLUG HSG 6POS 0.80MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1375875-1
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 6POS 0.80MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1375875-1 | 1375875 Series |
|---|---|---|
| Color | Natural | Natural |
| Connector Type | Plug | Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Outer Shroud Contact | Outer Shroud Contact |
| Insulation Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 6 | 6 - 40 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch [x] | 0.8 mm | 0.8 mm |
| Pitch [x] | 0.031 in | 0.031 in |
| Row Spacing | 0.13 in | 0.13 in |
| Row Spacing | 3.3 mm | 3.3 mm |
1375875 Series
CONN PLUG HSG 20POS 0.80MM
| Part | Color | Number of Positions | Note | Connector Type | Contact Termination | Pitch [x] | Pitch [x] | Row Spacing | Row Spacing | Contact Type | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Insulation Material | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1375875-8 | Natural | 20 | Contacts Not Included | Plug | Crimp | 0.8 mm | 0.031 in | 0.13 in | 3.3 mm | Outer Shroud Contact | 2 | 85 °C | -55 °C | Free Hanging (In-Line) | Liquid Crystal Polymer (LCP) | |
TE Connectivity AMP Connectors 1375875-3 | Natural | 10 | Contacts Not Included | Plug | Crimp | 0.8 mm | 0.031 in | 0.13 in | 3.3 mm | Outer Shroud Contact | 2 | 85 °C | -55 °C | Free Hanging (In-Line) | Liquid Crystal Polymer (LCP) | |
TE Connectivity AMP Connectors 1-1375875-8 | Natural | 40 | Contacts Not Included | Plug | Crimp | 0.8 mm | 0.031 in | 0.13 in | 3.3 mm | Outer Shroud Contact | 2 | 85 °C | -55 °C | Free Hanging (In-Line) | Liquid Crystal Polymer (LCP) | |
TE Connectivity AMP Connectors 1375875-1 | Natural | 6 | Contacts Not Included | Plug | Crimp | 0.8 mm | 0.031 in | 0.13 in | 3.3 mm | Outer Shroud Contact | 2 | 85 °C | -55 °C | Free Hanging (In-Line) | Liquid Crystal Polymer (LCP) | |
TE Connectivity AMP Connectors 1375875-5 | Natural | 14 | Contacts Not Included | Plug | Crimp | 0.8 mm | 0.031 in | 0.13 in | 3.3 mm | Outer Shroud Contact | 2 | 85 °C | -55 °C | Free Hanging (In-Line) | Liquid Crystal Polymer (LCP) | |
TE Connectivity AMP Connectors 1375875-6 | Natural | Contacts Not Included | Plug | Crimp | 0.8 mm | 0.031 in | 0.13 in | 3.3 mm | Outer Shroud Contact | 2 | 85 °C | -55 °C | Free Hanging (In-Line) | Liquid Crystal Polymer (LCP) | 16 | |
TE Connectivity AMP Connectors 1-1375875-4 | Natural | Contacts Not Included | Plug | Crimp | 0.8 mm | 0.031 in | 0.13 in | 3.3 mm | Outer Shroud Contact | 2 | 85 °C | -55 °C | Free Hanging (In-Line) | Liquid Crystal Polymer (LCP) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.58 | |
| 10 | $ 0.55 | |||
| 25 | $ 0.55 | |||
| 50 | $ 0.53 | |||
| 100 | $ 0.46 | |||
| 250 | $ 0.41 | |||
| 500 | $ 0.39 | |||
| 1000 | $ 0.34 | |||
| 2500 | $ 0.34 | |||
Description
General part information
1375875 Series
6 Rectangular Connectors - Housings Plug Natural 0.031" (0.80mm)
