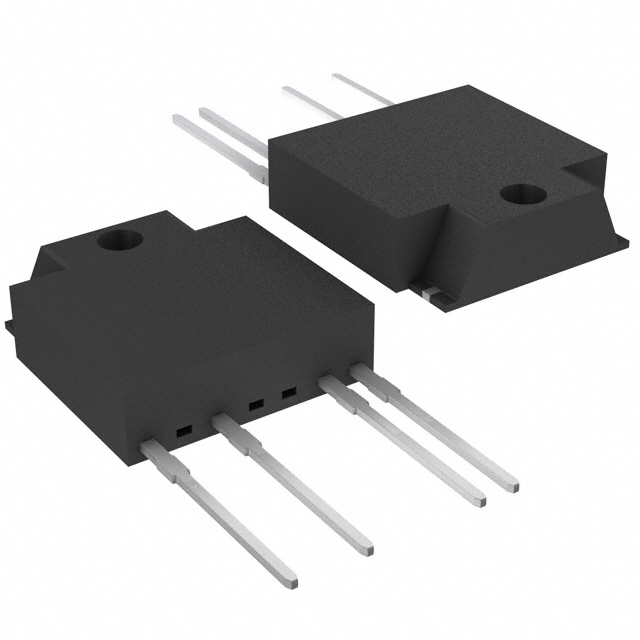

S102S11
ObsoleteSharp Microelectronics
SSR RELAY SPST-NO 8A 80-120V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S102S11
ObsoleteSharp Microelectronics
SSR RELAY SPST-NO 8A 80-120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | S102S11 | S102S1 Series |
|---|---|---|
| Approval Agency | CSA, UL | CSA, UL |
| Load Current | 8 A | 8 A |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -20 C | -20 C |
| Output Type | AC | AC, AC, Zero Cross |
| Package / Case | 4-SIP | 4-SIP |
| Supplier Device Package | 4-SIP | 4-SIP |
| Termination Style | PC Pin | PC Pin |
| Voltage - Input | 1.2 VDC | 1.2 VDC |
| Voltage - Load [Max] | 120 V | 120 V |
| Voltage - Load [Min] | 80 V | 80 V |
S102S1 Series
SSR RELAY SPST-NO 8A 80-120V
| Part | Output Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Load [Max] | Voltage - Load [Min] | Package / Case | Termination Style | Supplier Device Package | Load Current | Approval Agency | Voltage - Input |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sharp Microelectronics S102S11 | AC | Through Hole | -20 C | 80 C | 120 V | 80 V | 4-SIP | PC Pin | 4-SIP | 8 A | CSA, UL | 1.2 VDC |
Sharp Microelectronics S102S12 | AC, Zero Cross | Through Hole | -20 C | 80 C | 120 V | 80 V | 4-SIP | PC Pin | 4-SIP | 8 A | CSA, UL | 1.2 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
S102S1 Series
Solid State SPST-NO (1 Form A) 4-SIP
