Description
General part information

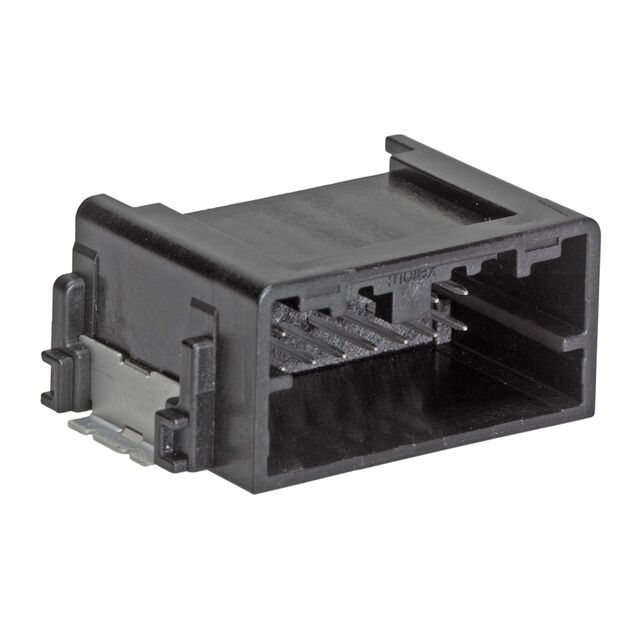

034897 Series
Automotive Connectors MINI50 RAHDR SMT 24CKT GRY POL B TUBE
Technical Specifications
Parameters and characteristics for this part
| Specification | 0348975120 |
|---|---|
| Applications | Automotive |
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 0.218 in |
| Contact Material | Brass |
| Contact Shape | Rectangular |
| Contact Type | Male Blade |
| Fastening Type | Latch Holder |
| Features | Solder Retention |
| Insulation Color | Black |
| Insulation Height | 0.46 in |
| Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Right Angle, Surface Mount |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch - Mating | 0.079 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
