FPG.00.304.CLAD35

Active

LEMO

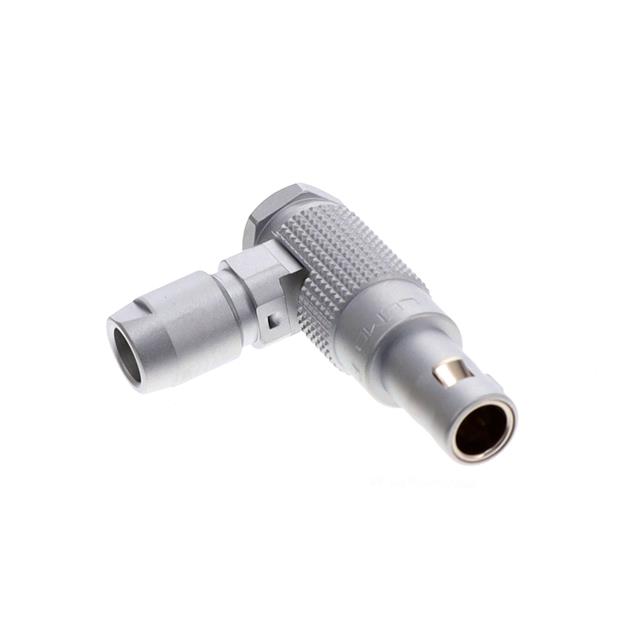

CONN PLUG MALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Active

LEMO

CONN PLUG MALE 4P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FPG.00.304.CLAD35	FPG.00.304 Series

Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Cable Opening [diameter]	3.5 mm	3.5 mm
Cable Opening [diameter]	0.138 in, 0.106 in	0.106 - 0.138 in
Cable Opening [diameter]	2.7 mm	2.7 mm
Color	Silver	Silver
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	2 A	2 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Positions	4	4
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	304	304
Shielding	Shielded	Shielded

CONN PLUG MALE 4P GOLD SLDR CUP

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Backshell Material, Plating	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Primary Material	Ingress Protection	Features	Shielding	Orientation	Shell Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Positions	Mounting Type	Fastening Type	Insert Material	Shell Size - Insert	Shell Finish	Current Rating (Amps)	Contact Finish - Mating	Color	Connector Type
LEMO FPG.00.304.CLAD35Z	1 µm	39.4 µin	Brass, Chrome	3.5 mm	0.106 in, 0.138 in	2.7 mm	Metal	IP50	Backshell	Shielded	G	Brass	Brass	-55 °C	250 °C	UL94 V-0	4	Free Hanging (In-Line), Right Angle	Push-Pull	Polyetheretherketone (PEEK)	304	Chrome	2 A	Gold	Silver	Male Pins, Plug
LEMO FPG.00.304.CLAD35	1 µm	39.4 µin	Brass, Chrome	3.5 mm	0.106 in, 0.138 in	2.7 mm	Metal	IP50	Backshell	Shielded	G	Brass	Brass	-55 °C	250 °C	UL94 V-0	4	Free Hanging (In-Line), Right Angle	Push-Pull	Polyetheretherketone (PEEK)	304	Chrome	2 A	Gold	Silver	Male Pins, Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Male Pins Solder Cup
