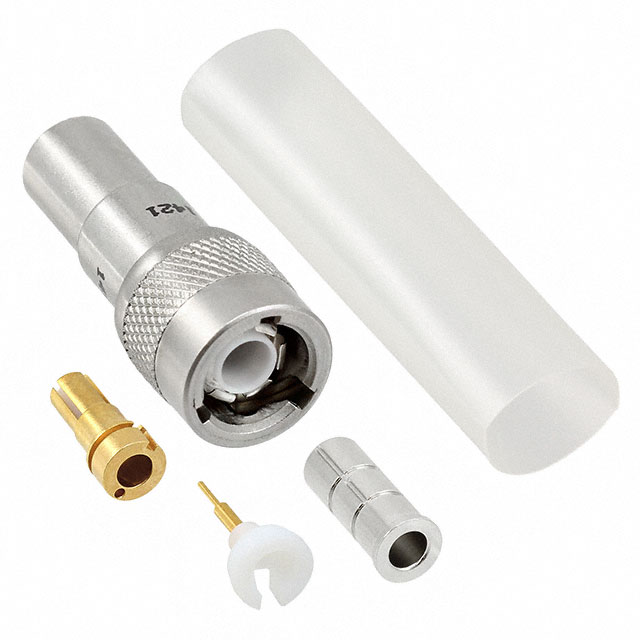

PL155AC-204

Active

Cinch Connectivity Solutions Trompeter

CONN TRS PLUG STR CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

PL155AC-204

Active

Cinch Connectivity Solutions Trompeter

CONN TRS PLUG STR CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 33.98

Description

General part information

PL155 Series

TRS, Twinaxial/Triaxial Connector Plug, Male Pin (Concentric) Non-Constant Free Hanging (In-Line) Crimp

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PL155AC-204	PL155 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	Raychem 10602	Raychem 10614, TRC-50-2, M17/134-00002, Raychem 7528A5314, M17/176-00002, Raychem 2524E0114, Raychem 10602, TRC-75-1
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	TRS, Twinaxial/Triaxial	TRS, Twinaxial/Triaxial
Connector Type	Plug, Male Pin (Concentric)	Plug, Male Pin (Concentric)
Contact Termination	Crimp	Crimp, Solder
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Three Lug	Three Lug, Four Lug
Frequency - Max [Max]	500 MHz	500 MHz
Housing Color	Silver	Silver
Impedance	Non-Constant	Non-Constant
Includes	1 Heat Shrink, 2 pcs - 1 Connector	1 Heat Shrink, 2 pcs - 1 Connector, 1 Strain Relief, 1 Connector
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Crimp, Wrench Clamp
Voltage Rating	400 V	400 V

PL155 Series

CONN TRS PLUG STR CRIMP

Part	Features	Number of Ports	Mating Cycles	Contact Termination	Body Finish	Housing Color	Mounting Type	Connector Style	Frequency - Max [Max]	Shield Termination	Voltage Rating	Cable Group	Includes	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Fastening Type	Body Material	Impedance	Center Contact Material
Cinch Connectivity Solutions Trompeter PL155AC-221	Three Lug	1	500	Crimp	Nickel	Silver	Free Hanging (In-Line)	TRS, Twinaxial/Triaxial	500 MHz	Crimp	400 V	Raychem 10614	1 Heat Shrink, 2 pcs - 1 Connector	Plug, Male Pin (Concentric)	-65 ░C	200 °C	Gold	Bayonet Lock	Brass	Non-Constant	Beryllium Copper
Cinch Connectivity Solutions Trompeter PL155AC-306	Three Lug	1	500	Crimp	Nickel	Silver	Free Hanging (In-Line)	TRS, Twinaxial/Triaxial	500 MHz	Crimp	400 V	M17/134-00002, TRC-50-2	1 Connector, 1 Strain Relief	Plug, Male Pin (Concentric)	-65 ░C	200 °C	Gold	Bayonet Lock	Brass	Non-Constant	Beryllium Copper
Cinch Connectivity Solutions Trompeter PL155AC-303	Three Lug	1	500	Crimp	Nickel	Silver	Free Hanging (In-Line)	TRS, Twinaxial/Triaxial	500 MHz	Crimp	400 V	Raychem 7528A5314	1 Heat Shrink, 2 pcs - 1 Connector	Plug, Male Pin (Concentric)	-65 ░C	200 °C	Gold	Bayonet Lock	Brass	Non-Constant	Beryllium Copper
Cinch Connectivity Solutions Trompeter PL155FL-47	Four Lug	1	500	Solder	Nickel	Silver	Free Hanging (In-Line)	TRS, Twinaxial/Triaxial	500 MHz	Wrench Clamp	400 V	M17/176-00002		Plug, Male Pin (Concentric)	-65 ░C	200 °C	Gold	Bayonet Lock	Brass	Non-Constant	Beryllium Copper
Cinch Connectivity Solutions Trompeter PL155AC-212	Three Lug	1	500	Crimp	Nickel	Silver	Free Hanging (In-Line)	TRS, Twinaxial/Triaxial	500 MHz	Crimp	400 V	Raychem 2524E0114	1 Connector, 1 Strain Relief	Plug, Male Pin (Concentric)	-65 ░C	200 °C	Gold	Bayonet Lock	Brass	Non-Constant	Beryllium Copper
Cinch Connectivity Solutions Trompeter PL155ACFL-201	Four Lug	1	500	Crimp	Nickel	Silver	Free Hanging (In-Line)	TRS, Twinaxial/Triaxial	500 MHz	Crimp	400 V	M17/176-00002	1 Heat Shrink, 2 pcs - 1 Connector	Plug, Male Pin (Concentric)	-65 ░C	200 °C	Gold	Bayonet Lock	Brass	Non-Constant	Beryllium Copper
Cinch Connectivity Solutions Trompeter PL155AC-204	Three Lug	1	500	Crimp	Nickel	Silver	Free Hanging (In-Line)	TRS, Twinaxial/Triaxial	500 MHz	Crimp	400 V	Raychem 10602	1 Heat Shrink, 2 pcs - 1 Connector	Plug, Male Pin (Concentric)	-65 ░C	200 °C	Gold	Bayonet Lock	Brass	Non-Constant	Beryllium Copper
Cinch Connectivity Solutions Trompeter PL155FL-33	Four Lug	1		Solder	Nickel	Silver	Free Hanging (In-Line)	TRS, Twinaxial/Triaxial	500 MHz	Wrench Clamp	400 V	TRC-75-1		Plug, Male Pin (Concentric)	-65 ░C	200 °C	Gold	Bayonet Lock	Brass	Non-Constant	Beryllium Copper
