XPLBWT-00-0000-000BV640E-SB01

Active

New Energy

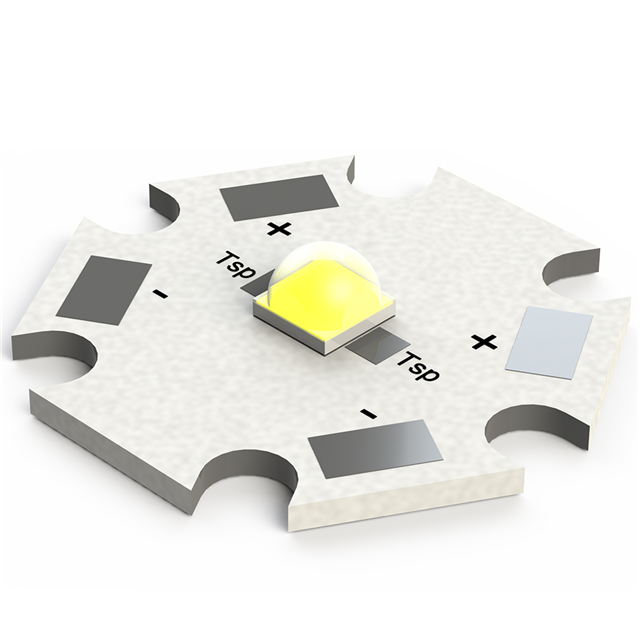

LED MOD XP-L2 WH STARBOARD 4000K

Search across all available documentation for this part.

Active

New Energy

LED MOD XP-L2 WH STARBOARD 4000K

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XPLBWT-00-0000-000BV640E-SB01	XPLBWT Series

CCT (K)	4000 K	2700 - 6500 K
Color	Neutral, White	Neutral, White, Warm, Cool
Configuration	Starboard	Starboard
CRI (Color Rendering Index)	70	70 - 80
Current - Max [Max]	3 A	3 A
Current - Test	1.05 A	1.05 A
Lens Type	Domed	Domed
Lumens/Watt @ Current - Test	-	138 - 159 lm/W
Luminous Flux @ Current/Temperature	490 lm	410 - 490 lm
Luminous Flux @ Current/Temperature	500 lm, 480 lm	480 - 500 lm
Luminous Flux @ Current/Temperature	-	460 lm
Luminous Flux @ Current/Temperature	-	480 lm
Size / Dimension [diameter]	19.89 mm	19.89 mm
Temperature - Test	85 °C	85 °C
Type	LED Module	LED Module
Viewing Angle	125 °	125 °
Voltage - Forward (Vf) (Typ)	2.82 V	2.82 V

LED MOD XP-L2 WH STARBOARD 4000K

Part	Lens Type	Viewing Angle	Voltage - Forward (Vf) (Typ)	Size / Dimension [diameter]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature	CCT (K)	Current - Test	Type	Current - Max [Max]	CRI (Color Rendering Index)	Color	Temperature - Test	Configuration	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]
New Energy XPLBWT-00-0000-000BV640E-SB01	Domed	125 °	2.82 V	19.89 mm	490 lm	480 lm, 500 lm	4000 K	1.05 A	LED Module	3 A	70	Neutral, White	85 °C	Starboard
New Energy XPLBWT-00-0000-000HV227G-SB01	Domed	125 °	2.82 V	19.89 mm	410 lm		2700 K	1.05 A	LED Module	3 A	80	Warm, White	85 °C	Starboard	138 lm/W
New Energy XPLBWT-00-0000-000BV50CB-SB01	Domed	125 °	2.82 V	19.89 mm	470 lm		6500 K	1.05 A	LED Module	3 A	70	Cool, White	85 °C	Starboard	159 lm/W	460 lm	480 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module XP-L2 White, Neutral Starboard
