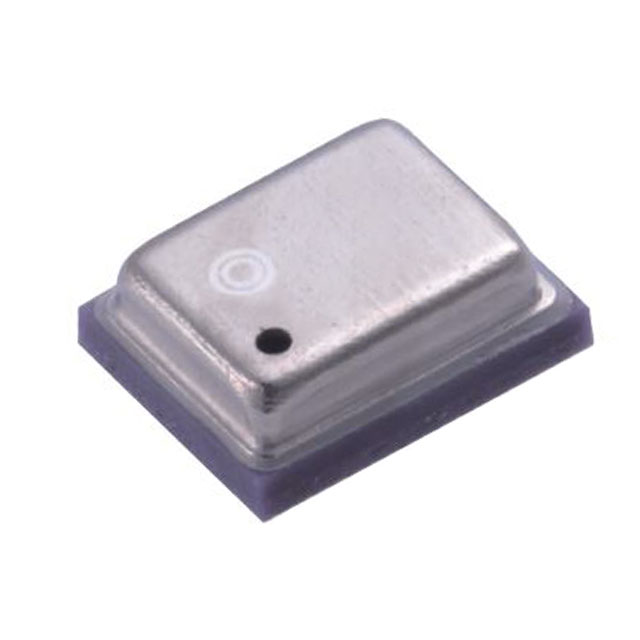

2SMPB-02E

Obsolete

Omron Electronics Inc-EMC Div

SENSOR 16.0PSIA 24BIT 9LGA

Search across all available documentation for this part.

Obsolete

Omron Electronics Inc-EMC Div

SENSOR 16.0PSIA 24BIT 9LGA

Technical Specifications

Parameters and characteristics commom to parts in this series

SENSOR 16.0PSIA 24BIT 9LGA

Part	Output	Applications	Port Style	Mounting Type	Operating Pressure [Min]	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Max]	Supplier Device Package	Accuracy	Accuracy	Output Type	Features	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Accuracy
Omron Electronics Inc-EMC Div 2SMPB-02B	24 b	Board Mount	No Port	Surface Mount	30 kPa	4.4 PSI	110 kPa	16 PSI	9-LGA (2.5x2)	0.1 kPa	0.015 PSI	I2C, SPI	Temperature Compensated	3.6 V	1.71 V	9-VLGA	SMD (SMT) Tab	85 °C	-40 °C
Omron Electronics Inc-EMC Div 2SMPB-02E	24 b	Board Mount	No Port	Surface Mount	30 kPa	4.4 PSI	110 kPa	16 PSI	9-LGA (2.5x2)	0.007 PSI		I2C, SPI	Temperature Compensated	3.6 V	1.71 V	9-VLGA	SMD (SMT) Tab	85 °C	-40 °C	0.05 kPa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pressure Sensor 4.4PSI ~ 16.0PSI (30kPa ~ 110kPa) Absolute 24 b 9-VLGA

Technical documentation and resources
