HEG.1B.308.CLLPV
ActiveLEMO

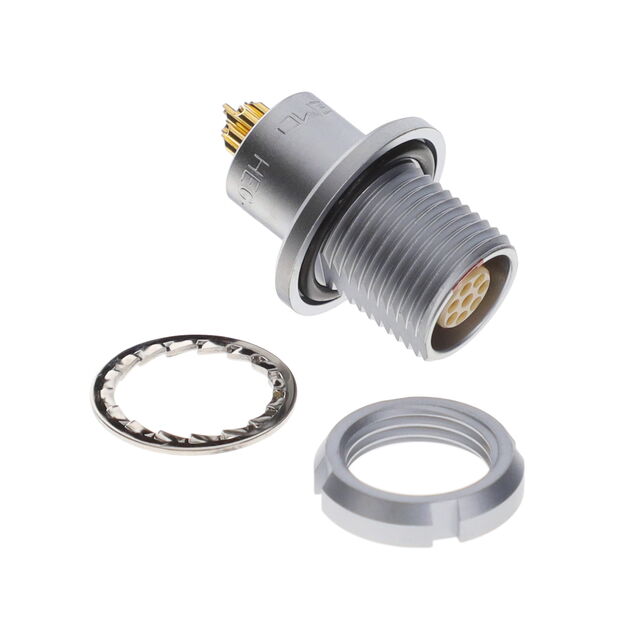

CONN RCPT FMALE 8P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HEG.1B.308.CLLPV
ActiveLEMO
CONN RCPT FMALE 8P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | HEG.1B.308.CLLPV | HEG.1B Series |
|---|---|---|
| Color | Silver | Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 5 A | 2 - 10 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Vacuumtight, Potted | Potted, Vacuumtight |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | - | Through Hole, Panel Mount |
| Number of Positions | 8 | 4 - 14 |
| Operating Temperature [Max] | 100 °C | 100 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Orientation | G | G |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 308 | 304 - 314 |
| Shielding | Shielded | Shielded |
| Termination | - | Solder |
HEG.1B Series
CONN RCPT FMALE 8P GOLD SLDR CUP
| Part | Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Feature | Features | Current Rating (Amps) | Connector Type | Primary Material | Number of Positions | Shell Size - Insert | Shell Finish | Contact Finish - Mating | Fastening Type | Insert Material | Contact Material | Material Flammability Rating | Orientation | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Shell Material | Mounting Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO HEG.1B.308.CLLP | Silver | 59 Áin | 1.5 Ám | Bulkhead - Front Side Nut | Potted | 5 A | Receptacle, Female Sockets | Metal | 8 | 308 | Chrome | Gold | Push-Pull | Polyetheretherketone (PEEK) | Bronze | UL94 V-0 | G | IP68 - Dust Tight, Waterproof | 100 °C | -20 C | Shielded | Brass | ||
LEMO HEG.1B.305.CLLP | Silver | 59 Áin | 1.5 Ám | Bulkhead - Front Side Nut | Potted | 9 A | Receptacle, Female Sockets | Metal | 305 | Chrome | Gold | Push-Pull | Polyetheretherketone (PEEK) | Bronze | UL94 V-0 | G | IP68 - Dust Tight, Waterproof | 100 °C | -20 C | Shielded | Brass | |||
LEMO HEG.1B.304.CLLPV | Silver | 59 Áin | 1.5 Ám | Bulkhead - Front Side Nut | Potted, Vacuumtight | 10 A | Receptacle, Female Sockets | Metal | 4 | 304 | Chrome | Gold | Push-Pull | Polyetheretherketone (PEEK) | Bronze | UL94 V-0 | G | IP68 - Dust Tight, Waterproof | 100 °C | -20 C | Shielded | Brass | ||
LEMO HEG.1B.308.CLLPV | Silver | 59 Áin | 1.5 Ám | Bulkhead - Front Side Nut | Potted, Vacuumtight | 5 A | Receptacle, Female Sockets | Metal | 8 | 308 | Chrome | Gold | Push-Pull | Polyetheretherketone (PEEK) | Bronze | UL94 V-0 | G | IP68 - Dust Tight, Waterproof | 100 °C | -20 C | Shielded | Brass | ||
LEMO HEG.1B.314.CLLPV | Silver | 59 Áin | 1.5 Ám | Bulkhead - Front Side Nut | Potted, Vacuumtight | 2 A | Receptacle, Female Sockets | Metal | 14 | 314 | Chrome | Gold | Push-Pull | Polyetheretherketone (PEEK) | Bronze | UL94 V-0 | G | IP68 - Dust Tight, Waterproof | 100 °C | -20 C | Shielded | Brass | ||
LEMO HEG.1B.307.CLNP | Silver | 59 Áin | 1.5 Ám | Bulkhead - Front Side Nut | Potted | 7 A | Receptacle, Female Sockets | Metal | 7 | 307 | Chrome | Gold | Push-Pull | Polyetheretherketone (PEEK) | Bronze | UL94 V-0 | G | IP68 - Dust Tight, Waterproof | 100 °C | -20 C | Shielded | Brass | Panel Mount, Through Hole | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 77.24 | |
Description
General part information
HEG.1B Series
8 Position Circular Connector Receptacle, Female Sockets Solder Cup
