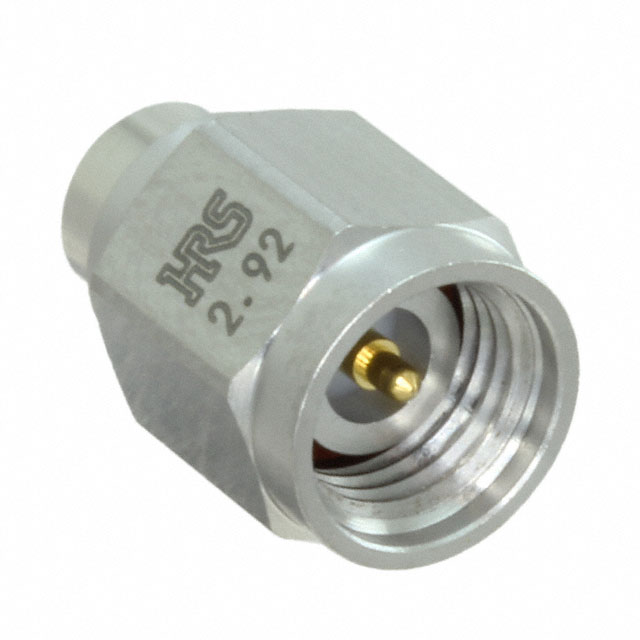

HK-TMP
ActiveHirose Electric Co Ltd
CONN TERMINATOR PLUG
Deep-Dive with AI
Search across all available documentation for this part.
HK-TMP
ActiveHirose Electric Co Ltd
CONN TERMINATOR PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | HK-TMP | - Series |
|---|---|---|
| - | - | |
| Accessory Type | - | Guide Socket, Guide Pin |
| Body Material | Stainless Steel | Stainless Steel |
| Color | - | Blue |
| Connector Style | 2.92 mm | 1.85 - 2.92 mm |
| Connector Type | Male Pin, Plug | Receptacle, Male Pin, Plug |
| Contact Finish | Gold | Gold |
| Contact Material | Brass | Brass |
| Contact Termination | - | Crimp, Solder |
| Contact Type | - | Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Features | - | Flange |
| For Use With/Related Products | - | EX Series, EM Series |
| Frequency - Max [Max] | 40 GHz | 10 - 65 GHz |
| Impedance | 50 Ohms | 50 Ohms |
| Insulation Material | - | Resin |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Surface Mount, Free Hanging, Cap |
| Note | - | Contacts Not Included |
| Number of Ports | - | 1 |
| Number of Positions | - | 12 - 45 |
| Number of Positions | - | 16 |
| Number of Rows | - | 3 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Shield Termination | - | Solder |
- Series
CONNECTOR
| Part | Mounting Type | Connector Type | Contact Termination | Contact Type | Note | Features | Number of Rows | Number of Positions | Insulation Material | Color | Number of Positions | Accessory Type | For Use With/Related Products | Impedance | Connector Style | Body Material | Contact Finish | Dielectric Material | Contact Material | Frequency - Max [Max] | Number of Ports | Operating Temperature [Max] | Operating Temperature [Min] | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric Co Ltd NJ-MCXJ-WBPA | ||||||||||||||||||||||||
Hirose Electric Co Ltd 3CV-P3(40) | ||||||||||||||||||||||||
Hirose Electric Co Ltd 1.0/2.3-P-HMC085 | ||||||||||||||||||||||||
Hirose Electric Co Ltd SC-1645 | Free Hanging (In-Line) | Receptacle | Crimp | Female Socket | Contacts Not Included | Flange | 3 | 45 | Resin | Blue | ||||||||||||||
Hirose Electric Co Ltd SC-1616 | Free Hanging (In-Line) | Receptacle | Crimp | Female Socket | Contacts Not Included | Flange | 3 | Resin | Blue | 16 | ||||||||||||||
Hirose Electric Co Ltd EX-SG | Guide Socket | EX Series | ||||||||||||||||||||||
Hirose Electric Co Ltd M-P-10-1(40) | ||||||||||||||||||||||||
Hirose Electric Co Ltd QT-11 | ||||||||||||||||||||||||
Hirose Electric Co Ltd M-P-3-1(40) | ||||||||||||||||||||||||
Hirose Electric Co Ltd HK-TMP | Free Hanging (In-Line) | Male Pin, Plug | 50 Ohms | 2.92 mm | Stainless Steel | Gold | Polytetrafluoroethylene (PTFE) | Brass | 40 GHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 104.72 | |
| 10 | $ 81.51 | |||
| 25 | $ 74.17 | |||
| 50 | $ 69.23 | |||
| 100 | $ 64.75 | |||
Description
General part information
- Series
Terminator Coax Connector Plug, Male Pin 2.92mm 50 Ohms
