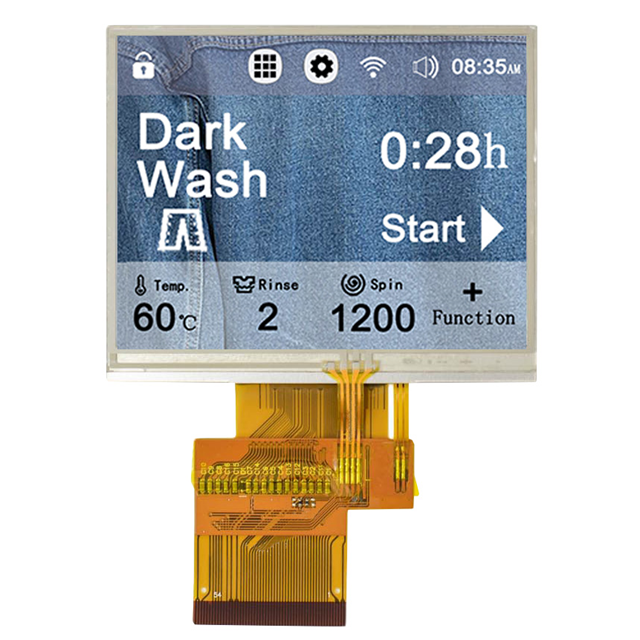

ATM0350D17

Active

AZ Displays

3.5" IPS LCD 240 X 320

Search across all available documentation for this part.

Active

AZ Displays

3.5" IPS LCD 240 X 320

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 23.99

General part information

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color, IPS (In-Plane Switching) Parallel, 24-Bit (RGB) 3.5" (88.90mm) 320 x 240

Technical documentation and resources

Specification	ATM0350D17	ATM0350 Series

Background Color	White	White
Backlight	LED	LED
Controller Type	-	SSD2119AM1
Display Mode	Transmissive	Transmissive
Display Type	TFT - Color, IPS (In-Plane Switching)	TFT - Color, TFT - Color, IPS (In-Plane Switching), TN - Twisted Nematic
Dot Pitch [custom]	0.07 mm	0.07 mm
Dot Pitch [custom]	0.22 mm	0.22 mm
Dot Pixels [x]	320 pixels	320 pixels
Dot Pixels [y]	240 pixels	240 pixels
Dot Size [y]	0.22 mm	0.22 mm
Dot Size [z]	0.22 mm	0.22 mm
Graphics Color	Green, Red, Blue	Green, Red, Blue
Interface	Parallel	Parallel, MCU, RGB
Interface	24 Bit	24 Bit
Viewing Area [x]	70.08 mm	70.08 - 73.2 mm
Viewing Area [y]	52.56 mm	52.56 - 55.7 mm

Part	Graphics Color	Dot Size [z]	Dot Size [y]	Viewing Area [y]	Viewing Area [x]	Dot Pixels [y]	Dot Pixels [x]	Display Type	Backlight	Display Mode	Dot Pitch [custom]	Dot Pitch [custom]	Background Color	Interface	Interface	Controller Type
AZ Displays ATM0350D19A-1	Blue, Green, Red	0.22 mm	0.22 mm	52.56 mm	70.08 mm	240 pixels	320 pixels	TFT - Color	LED	Transmissive	0.07 mm	0.22 mm	White	Parallel	24 Bit
AZ Displays ATM0350D17	Blue, Green, Red	0.22 mm	0.22 mm	52.56 mm	70.08 mm	240 pixels	320 pixels	TFT - Color, IPS (In-Plane Switching)	LED	Transmissive	0.07 mm	0.22 mm	White	Parallel	24 Bit
AZ Displays ATM0350B47B	Blue, Green, Red			55.7 mm	73.2 mm	240 pixels	320 pixels	TFT - Color, TN - Twisted Nematic	LED	Transmissive	0.07 mm	0.22 mm	White	MCU, RGB		SSD2119AM1
