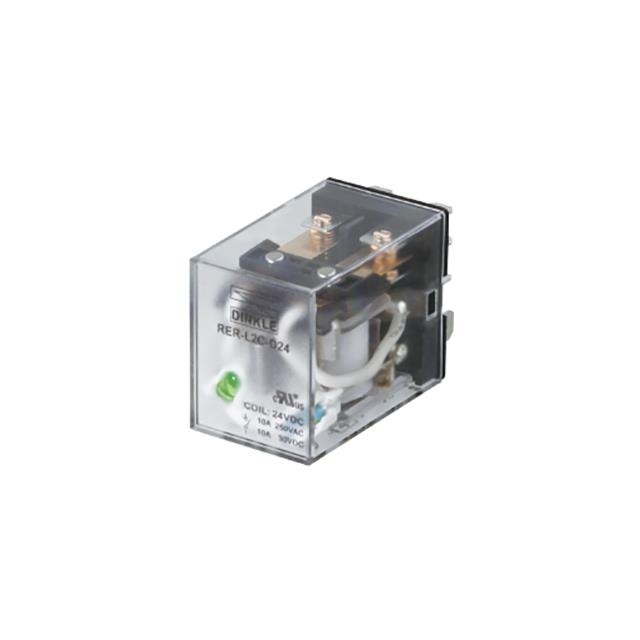

RER-L2C-D24

Active

Dinkle Corporation, USA

RELAY GEN PURPOSE SPDT 10A 24V

Search across all available documentation for this part.

Active

Dinkle Corporation, USA

RELAY GEN PURPOSE SPDT 10A 24V

Technical Specifications

Parameters and characteristics for this part

RELAY GEN PURPOSE SPDT 10A 24V

Part	Contact Form	Switching Voltage [Max]	Termination Style	Coil Resistance	Coil Type	Coil Current	Must Operate Voltage	Contact Material	Coil Voltage	Relay Type	Operate Time	Must Release Voltage	Contact Rating (Current)	Features	Mounting Type	Release Time	Operating Temperature [Max]	Operating Temperature [Min]
Dinkle Corporation, USA RER-L2C-D24	DPDT (2 Form C)	30 VDC, 250 VAC	Plug In, Quick Connect - 0.187" (4.7mm)	640 Ohms	Non Latching	36.9 mA	18 VDC	Silver Tin Oxide (AgSnO)	24 VDC	General Purpose	20 ms	2.4 VDC	10 A	Lighted Indicator	Socketable	20 ms	55 °C	-25 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable

Technical documentation and resources

No documents available
