104809-4

Active

TE Connectivity AMP Connectors

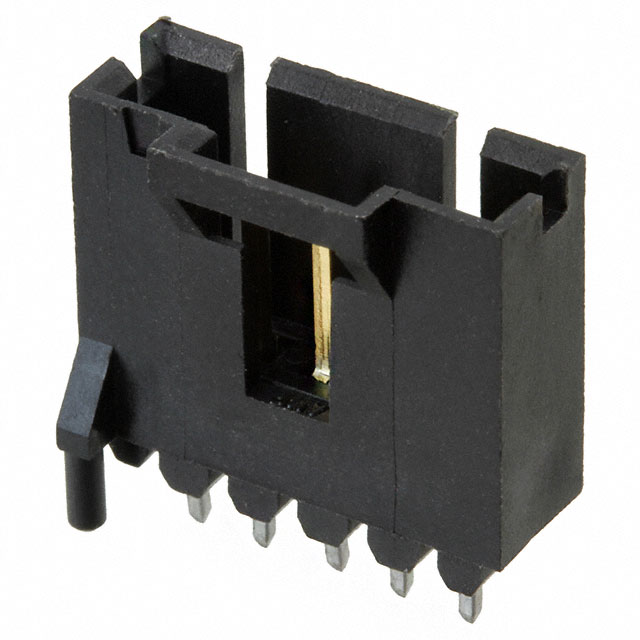

CONN HEADER VERT 5POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

104809-4

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 5POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	104809-4	104809 Series

Applications	Medical, General Purpose, Automotive, Telecommunications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin-Lead, Tin
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 µm
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating	5.84 mm	5.84 mm
Contact Length - Mating [x]	0.23 in	0.23 in
Contact Length - Post	0.13 in	0.13 in
Contact Length - Post	3.3 mm	3.3 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Latch Holder	Latch Holder
Features	Board Guide, Keying Slot	Board Guide, Keying Slot
Insulation Color	Black	Black
Insulation Height	13.6 mm	13.6 mm
Insulation Height	0.535 in	0.535 in
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	-	2 - 12
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	0.545 in	0.545 in
Overall Contact Length	13.84 mm	13.84 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder, Press-Fit	Solder, Press-Fit

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2520	$ 2.19

104809 Series

CONN HEADER VERT 6POS 2.54MM

Part	Mounting Type	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Applications	Style	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Insulation Height	Insulation Height	Contact Type	Overall Contact Length	Overall Contact Length	Number of Rows	Contact Finish - Mating	Contact Shape	Insulation Material	Features	Contact Length - Mating [x]	Contact Length - Mating	Number of Positions Loaded	Fastening Type	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Connector Type	Termination	Material Flammability Rating	Contact Finish - Post
TE Connectivity AMP Connectors 104809-5	Through Hole	Shrouded - 4 Wall	-65 ░C	105 ░C	Brass	Automotive, General Purpose, Medical, Telecommunications	Board to Board, Cable	0.1 in	2.54 mm	2.54 µm	100 µin	Black	15 µin	0.38 µm	6	13.6 mm	0.535 in	Male Pin	0.545 in	13.84 mm	1	Gold	Square	Thermoplastic	Board Guide, Keying Slot	0.23 in	5.84 mm	All	Latch Holder	3 A	0.13 in	3.3 mm	Header	Press-Fit, Solder	UL94 V-0	Tin-Lead
TE Connectivity AMP Connectors 104809-4	Through Hole	Shrouded - 4 Wall	-65 ░C	105 ░C	Brass	Automotive, General Purpose, Medical, Telecommunications	Board to Board, Cable	0.1 in	2.54 mm	2.54 µm	100 µin	Black	15 µin	0.38 µm		13.6 mm	0.535 in	Male Pin	0.545 in	13.84 mm	1	Gold	Square	Thermoplastic	Board Guide, Keying Slot	0.23 in	5.84 mm	All	Latch Holder	3 A	0.13 in	3.3 mm	Header	Press-Fit, Solder	UL94 V-0	Tin-Lead
TE Connectivity AMP Connectors 5-104809-9	Through Hole	Shrouded - 4 Wall	-65 ░C	105 ░C	Brass	Automotive, General Purpose, Medical, Telecommunications	Board to Board, Cable	0.1 in	2.54 mm	2.54 µm	100 µin	Black	15 µin	0.38 µm	10	13.6 mm	0.535 in	Male Pin	0.545 in	13.84 mm	1	Gold	Square	Thermoplastic	Board Guide, Keying Slot	0.23 in	5.84 mm	All	Latch Holder	3 A	0.13 in	3.3 mm	Header	Press-Fit, Solder	UL94 V-0	Tin
TE Connectivity AMP Connectors 5-104809-2	Through Hole	Shrouded - 4 Wall	-65 ░C	105 ░C	Brass	Automotive, General Purpose, Medical, Telecommunications	Board to Board, Cable	0.1 in	2.54 mm	2.54 µm	100 µin	Black	15 µin	0.38 µm		13.6 mm	0.535 in	Male Pin	0.545 in	13.84 mm	1	Gold	Square	Thermoplastic	Board Guide, Keying Slot	0.23 in	5.84 mm	All	Latch Holder	3 A	0.13 in	3.3 mm	Header	Press-Fit, Solder	UL94 V-0	Tin
TE Connectivity AMP Connectors 5-104809-7	Through Hole	Shrouded - 4 Wall	-65 ░C	105 ░C	Brass	Automotive, General Purpose, Medical, Telecommunications	Board to Board, Cable	0.1 in	2.54 mm	2.54 µm	100 µin	Black	15 µin	0.38 µm	8	13.6 mm	0.535 in	Male Pin	0.545 in	13.84 mm	1	Gold	Square	Thermoplastic	Board Guide, Keying Slot	0.23 in	5.84 mm	All	Latch Holder	3 A	0.13 in	3.3 mm	Header	Press-Fit, Solder	UL94 V-0	Tin
TE Connectivity AMP Connectors 104809-8	Through Hole	Shrouded - 4 Wall	-65 ░C	105 ░C	Brass	Automotive, General Purpose, Medical, Telecommunications	Board to Board, Cable	0.1 in	2.54 mm	2.54 µm	100 µin	Black	15 µin	0.38 µm	9	13.6 mm	0.535 in	Male Pin	0.545 in	13.84 mm	1	Gold	Square	Thermoplastic	Board Guide, Keying Slot	0.23 in	5.84 mm	All	Latch Holder	3 A	0.13 in	3.3 mm	Header	Press-Fit, Solder	UL94 V-0	Tin-Lead
TE Connectivity AMP Connectors 1-104809-0	Through Hole	Shrouded - 4 Wall	-65 ░C	105 ░C	Brass	Automotive, General Purpose, Medical, Telecommunications	Board to Board, Cable	0.1 in	2.54 mm	2.54 µm	100 µin	Black	15 µin	0.38 µm	11	13.6 mm	0.535 in	Male Pin	0.545 in	13.84 mm	1	Gold	Square	Thermoplastic	Board Guide, Keying Slot	0.23 in	5.84 mm	All	Latch Holder	3 A	0.13 in	3.3 mm	Header	Press-Fit, Solder	UL94 V-0	Tin-Lead
TE Connectivity AMP Connectors 5-104809-5	Through Hole	Shrouded - 4 Wall	-65 ░C	105 ░C	Brass	Automotive, General Purpose, Medical, Telecommunications	Board to Board, Cable	0.1 in	2.54 mm	2.54 µm	100 µin	Black	15 µin	0.38 µm	6	13.6 mm	0.535 in	Male Pin	0.545 in	13.84 mm	1	Gold	Square	Thermoplastic	Board Guide, Keying Slot	0.23 in	5.84 mm	All	Latch Holder	3 A	0.13 in	3.3 mm	Header	Press-Fit, Solder	UL94 V-0	Tin
TE Connectivity AMP Connectors 104809-9	Through Hole	Shrouded - 4 Wall	-65 ░C	105 ░C	Brass	Automotive, General Purpose, Medical, Telecommunications	Board to Board, Cable	0.1 in	2.54 mm	2.54 µm	100 µin	Black	15 µin	0.38 µm	10	13.6 mm	0.535 in	Male Pin	0.545 in	13.84 mm	1	Gold	Square	Thermoplastic	Board Guide, Keying Slot	0.23 in	5.84 mm	All	Latch Holder	3 A	0.13 in	3.3 mm	Header	Press-Fit, Solder	UL94 V-0	Tin-Lead
TE Connectivity AMP Connectors 104809-1	Through Hole	Shrouded - 4 Wall	-65 ░C	105 ░C	Brass	Automotive, General Purpose, Medical, Telecommunications	Board to Board, Cable	0.1 in	2.54 mm	2.54 µm	100 µin	Black	15 µin	0.38 µm	2	13.6 mm	0.535 in	Male Pin	0.545 in	13.84 mm	1	Gold	Square	Thermoplastic	Board Guide, Keying Slot	0.23 in	5.84 mm	All	Latch Holder	3 A	0.13 in	3.3 mm	Header	Press-Fit, Solder	UL94 V-0	Tin-Lead
TE Connectivity AMP Connectors 6-104809-1	Through Hole	Shrouded - 4 Wall	-65 ░C	105 ░C	Brass	Automotive, General Purpose, Medical, Telecommunications	Board to Board, Cable	0.1 in	2.54 mm	2.54 µm	100 µin	Black	15 µin	0.38 µm	12	13.6 mm	0.535 in	Male Pin	0.545 in	13.84 mm	1	Gold	Square	Thermoplastic	Board Guide, Keying Slot	0.23 in	5.84 mm	All	Latch Holder	3 A	0.13 in	3.3 mm	Header	Press-Fit, Solder	UL94 V-0	Tin

Description

General part information

104809 Series

Connector Header Through Hole 5 position 0.100" (2.54mm)
