2-1103111-3
ActiveTE Connectivity AMP Connectors

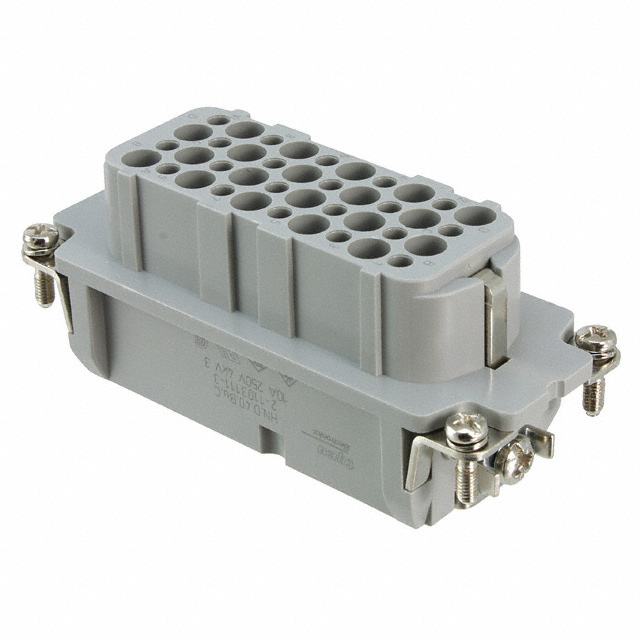

INSERT FEMALE 40POS+1GND CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-1103111-3
ActiveTE Connectivity AMP Connectors
INSERT FEMALE 40POS+1GND CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1103111-3 |
|---|---|
| Color | Gray |
| Connector Type | Insert without Contacts |
| Contact Type | HTS HN.D |
| Current Rating (Amps) | 10 A |
| Gender | Female |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 40+Ground |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 6 |
| Termination Style | Crimp |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 45.13 | |
1103111 Series
INSERT FEMALE 40POS+1GND CRIMP
| Part | Number of Positions | Current Rating (Amps) | Connector Type | Termination Style | Color | Contact Type | Size | Material Flammability Rating | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1103111-3 | 40+Ground | 10 A | Insert without Contacts | Crimp | Gray | HTS HN.D | 6 | UL94 V-0 | Female | 125 °C | -40 °C | 250 VDC |
Description
General part information
1103111 Series
Female Insert without Contacts Gray 40+Ground Position Crimp
