A1000.1/2NPT.080

Active

American Electrical Inc.

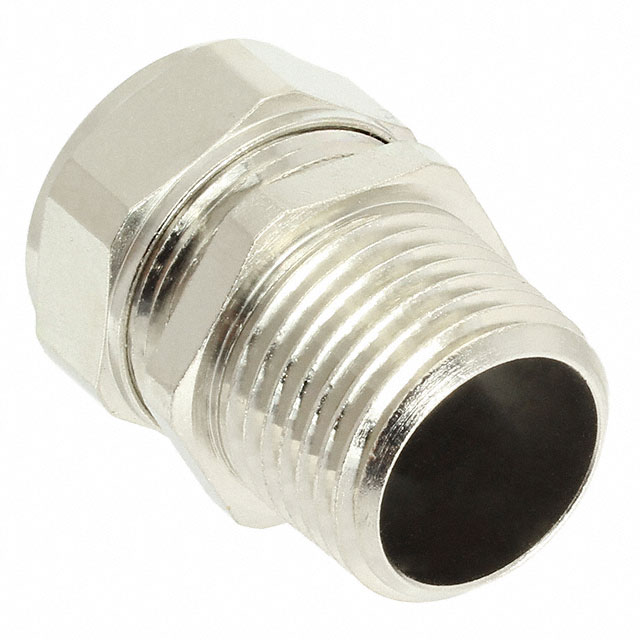

CABLE GLAND 6-8MM 1/2" NPT BRASS

Search across all available documentation for this part.

Active

American Electrical Inc.

CABLE GLAND 6-8MM 1/2" NPT BRASS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated 1/2" NPT Silver

Technical documentation and resources

Specification	A1000.1/2NPT.080	1000.1/2 Series

Color	Silver	Silver
Includes	Seal	Seal
Ingress Protection	IP68, IP69K	IP68, IP69K
Material	Brass, Nickel Plated	Brass, Nickel Plated
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max)	-	0.433 in
Outside Cable Diameter (Max)	-	11 mm
Outside Cable Diameter (Max) [Max] [diameter]	8 mm	8 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.315 in	0.315 in
Outside Cable Diameter (Min) [Min] [diameter]	6 mm	6 - 8 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.236 in	0.236 - 0.315 in
Thread Length	0.591 in	0.591 in
Thread Length	15 mm	15 mm
Thread Size	1/2" NPT	1/2" NPT
Type	Cable Gland	Cable Gland

Part	Type	Color	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Material	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Includes	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]
American Electrical Inc. A1000.1/2NPT.110	Cable Gland	Silver	100 °C	-40 °C	IP68, IP69K	Brass, Nickel Plated	0.591 in	15 mm	8 mm	0.315 in	Seal	0.433 in	11 mm	1/2" NPT
American Electrical Inc. A1000.1/2NPT.080	Cable Gland	Silver	100 °C	-40 °C	IP68, IP69K	Brass, Nickel Plated	0.591 in	15 mm	6 mm	0.236 in	Seal			1/2" NPT	8 mm	0.315 in
