P500-010

Active

CarlisleIT

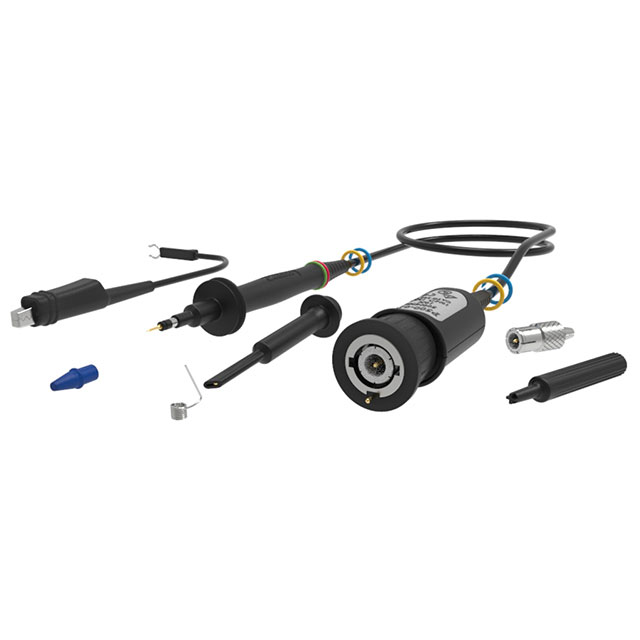

PROBE KIT,10X 500MHZ,10:1,CATII

Search across all available documentation for this part.

Active

CarlisleIT

PROBE KIT,10X 500MHZ,10:1,CATII

Technical Specifications

Parameters and characteristics for this part

Specification	P500-010

Attenuation Value [custom]	10:1
Bandwidth	500 MHz
Capacitance - Input	11 pF
Color	Black
Includes	Grabber Hook, Manual, Probe, Ground Leads, BNC Adapter, Insulating Cap, Ground Spring
Resistance - Input	10 M
Type	Passive
Voltage - Max	300 V

PROBE KIT,10X 500MHZ,10:1,CATII

Part	Color	Capacitance - Input	Resistance - Input	Bandwidth	Type	Includes	Attenuation Value [custom]	Voltage - Max
CarlisleIT P500-010	Black	11 pF	10 M	500 MHz	Passive	BNC Adapter, Grabber Hook, Ground Leads, Ground Spring, Insulating Cap, Manual, Probe	10:1	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10:1 Passive 500MHz Black Oscilloscope Probe Test Lead 10M Input Resistance CAT II 300V
