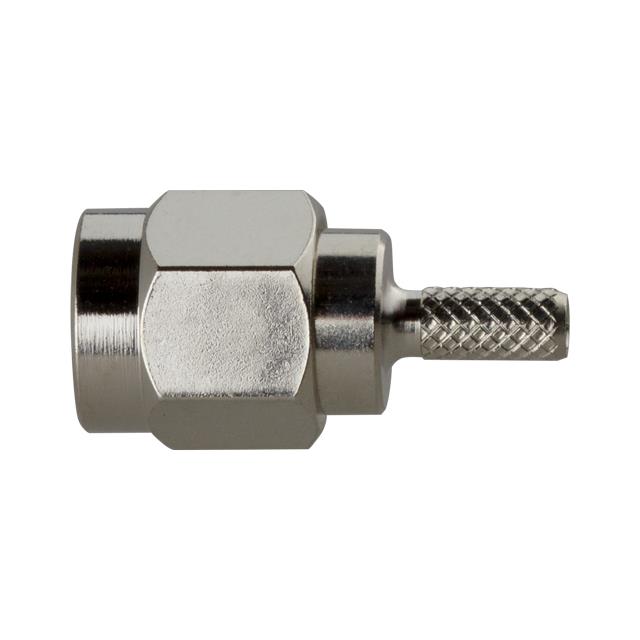

RP-3000-C1
ActiveRF Industries
RP SMA MALE CRIMP; 50 OHMS
Deep-Dive with AI
Search across all available documentation for this part.
RP-3000-C1
ActiveRF Industries
RP SMA MALE CRIMP; 50 OHMS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RP-3000-C1 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | RP-SMA |
| Connector Type | Plug, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 12.4 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 5.10 | |
| 50 | $ 5.00 | |||
| 100 | $ 4.90 | |||
Description
General part information
RP-3000-C1
RP-SMA Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder
Documents
Technical documentation and resources
No documents available
