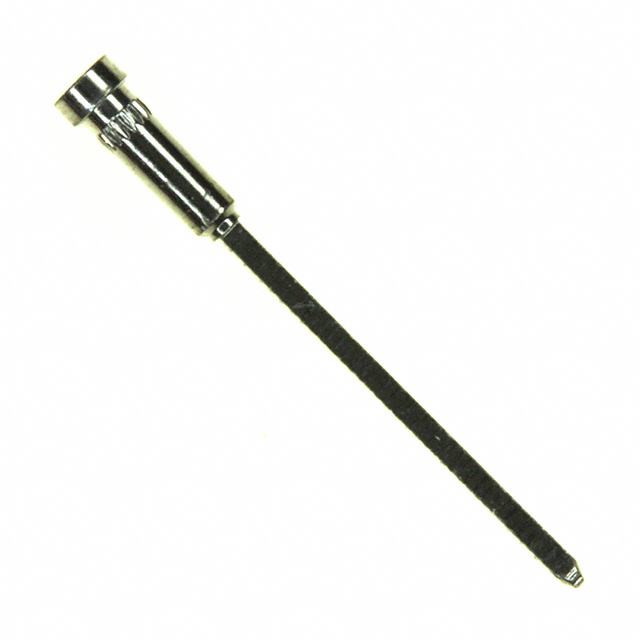

0038-3-17-01-30-27-02-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.025 PRESSFIT

Deep-Dive with AI

Search across all available documentation for this part.

0038-3-17-01-30-27-02-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.025 PRESSFIT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.42
		10	$ 0.35
		25	$ 0.31
		50	$ 0.29
		100	$ 0.28
		250	$ 0.25
		500	$ 0.24
		1000	$ 0.20
		2500	$ 0.18

Description

General part information

0038-3 Series

Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Wire Wrap Press-Fit

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0038-3-17-01-30-27-02-0	0038-3 Series

Accepts Pin Diameter [Max]	0.025 "	0.025 "
Accepts Pin Diameter [Max]	0.64 mm	0.64 mm
Accepts Pin Diameter [Min]	0.015 "	0.015 "
Accepts Pin Diameter [Min]	0.38 mm	0.38 mm
Contact Finish	Gold	Gold, Unplated, Tin, Tin-Lead
Contact Finish Thickness	0.76 Ám	0.25 - 2.54 Ám
Contact Finish Thickness	30 Áin	10 - 100 Áin
Contact Material	Beryllium Copper	Beryllium Copper
Flange Diameter [diameter]	1.83 mm	1.83 mm
Flange Diameter [diameter]	0.072 in	0.072 in
Length - Overall [x]	17.78 mm	17.78 mm
Length - Overall [x]	0.7 in	0.7 in
Mounting Hole Diameter [diameter]	0.057 "	0.057 "
Mounting Hole Diameter [diameter]	1.45 mm	1.45 mm
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Socket Depth	0.162 in	0.083 - 0.162 in
Socket Depth	4.12 mm	2.11 - 4.12 mm
Tail Diameter	0.64 mm	0.64 mm
Tail Diameter	0.025 in	0.025 in
Tail Type	Wire Wrap	Wire Wrap
Termination	Press-Fit	Press-Fit

0038-3 Series

CONN PIN RCPT

Part	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Socket Depth	Socket Depth	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Diameter	Tail Diameter	Length - Overall [x]	Length - Overall [x]	Contact Material	Tail Type
Mill-Max Manufacturing Corp. 0038-3-17-80-30-14-02-0	0.057 "	1.45 mm	-55 °C	125 °C	0.162 in	4.12 mm	Press-Fit	10 Áin	0.25 Ám	Gold	0.025 "	0.64 mm	0.015 "	0.38 mm	1.83 mm	0.072 in	0.64 mm	0.025 in	17.78 mm	0.7 in	Beryllium Copper	Wire Wrap
Mill-Max Manufacturing Corp. 0038-3-05-15-00-00-01-0	0.057 "	1.45 mm					Press-Fit			Unplated					1.83 mm	0.072 in			17.78 mm	0.7 in		Wire Wrap
Mill-Max Manufacturing Corp. 0038-3-17-80-30-84-02-0	0.057 "	1.45 mm	-55 °C	125 °C	0.162 in	4.12 mm	Press-Fit	100 µin	2.54 µm	Tin	0.025 "	0.64 mm	0.015 "	0.38 mm	1.83 mm	0.072 in	0.64 mm	0.025 in	17.78 mm	0.7 in	Beryllium Copper	Wire Wrap
Mill-Max Manufacturing Corp. 0038-3-17-01-30-27-02-0	0.057 "	1.45 mm	-55 °C	125 °C	0.162 in	4.12 mm	Press-Fit	30 Áin	0.76 Ám	Gold	0.025 "	0.64 mm	0.015 "	0.38 mm	1.83 mm	0.072 in	0.64 mm	0.025 in	17.78 mm	0.7 in	Beryllium Copper	Wire Wrap
Mill-Max Manufacturing Corp. 0038-3-17-15-30-27-02-0	0.057 "	1.45 mm	-55 °C	125 °C	0.162 in	4.12 mm	Press-Fit	30 Áin	0.76 Ám	Gold	0.025 "	0.64 mm	0.015 "	0.38 mm	1.83 mm	0.072 in	0.64 mm	0.025 in	17.78 mm	0.7 in	Beryllium Copper	Wire Wrap
Mill-Max Manufacturing Corp. 0038-3-17-01-30-02-02-0	0.057 "	1.45 mm	-55 °C	125 °C	0.083 in	2.11 mm	Press-Fit	100 µin	2.54 µm	Tin-Lead	0.025 "	0.64 mm	0.015 "	0.38 mm	1.83 mm	0.072 in			17.78 mm	0.7 in	Beryllium Copper	Wire Wrap
Mill-Max Manufacturing Corp. 0038-3-05-21-00-00-01-0	0.057 "	1.45 mm					Press-Fit			Unplated					1.83 mm	0.072 in			17.78 mm	0.7 in		Wire Wrap
