FMCA2811-50CM
ActiveFairview Microwave
CBL ASSY TYPE NPLUG-TYPE NJACK 1
FMCA2811-50CM
ActiveFairview Microwave
CBL ASSY TYPE NPLUG-TYPE NJACK 1
Description
General part information
FMCA2811-50CM

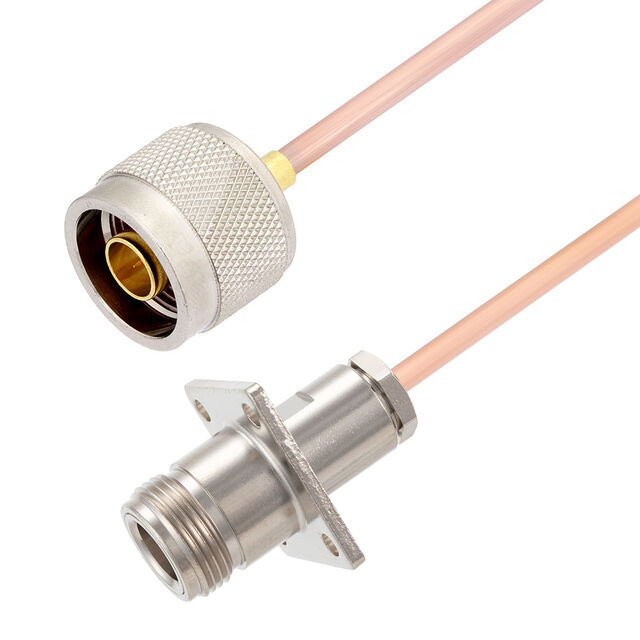

Cable Assembly Coaxial N-Type to N-Type Hand Formable .141 19.69" (500.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2811-50CM |
|---|---|
| 1st Connector | N-Type Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Flange |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | Hand Formable |
| Cable Type Size | 0.141 |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 11 GHz |
| Length | 19.69 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | N-Type |
