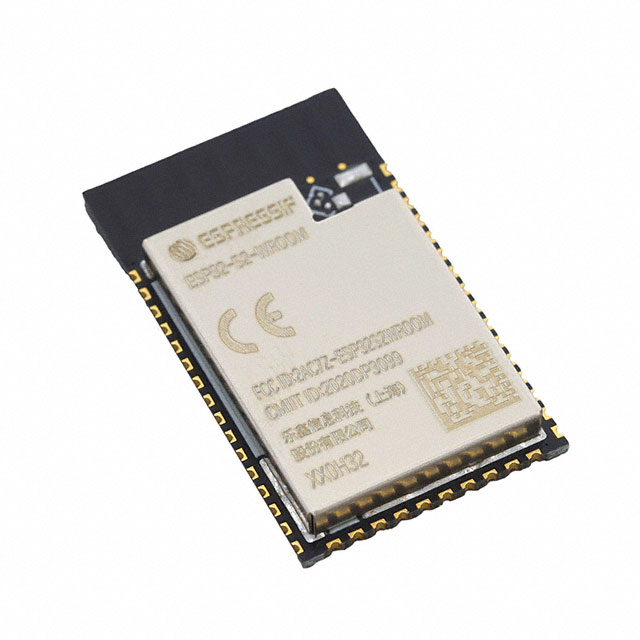

ESP32-S2-WROOM-N4

Espressif Systems

RF TXRX MOD WIFI PCB TRACE SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ESP32-S2-WROOM-N4

Espressif Systems

RF TXRX MOD WIFI PCB TRACE SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.05
	Tape & Reel (TR)	650	$ 2.05

Description

General part information

ESP32-S2 Series

WiFi 802.11b/g/n Transceiver Module 2.4GHz PCB Trace Surface Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ESP32-S2-WROOM-N4	ESP32-S2 Series

Antenna Type	PCB Trace	Antenna Not Included, U.FL, PCB Trace, Antenna Not Included
Contents	-	Board(s)
Current - Receiving [Max]	68 mA	68 mA
Current - Receiving [Min]	63 mA	63 mA
Current - Transmitting [Max]	310 mA	310 mA
Current - Transmitting [Min]	160 mA	160 - 165 mA
Data Rate	150 Mbps	150 Mbps
For Use With/Related Products	-	ESP32-S2-WROVER, ESP32-S2, ESP32-S2-WROOM
Frequency	2.4 GHz	2.4 GHz
Frequency	-	2.484 GHz
Frequency	-	2.412 GHz
Memory Size	-	2 - 336 MB
Memory Size	-	4 MB
Memory Size	-	320 - 336 kB
Memory Size	-	128 kB
Memory Size	-	2 MB
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	85 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	56-VFQFN Exposed Pad	56-VFQFN Exposed Pad, 40-SMD Module, 41-SMD Module, 56-SMD Module
Power - Output	19.5 dBm	19.5 dBm
Protocol	802.11b/g/n	802.11b/g/n
RF Family/Standard	WiFi	WiFi
Sensitivity	-97 dBm	-97 dBm
Serial Interfaces	I2S, I2C, SPI, UART, PWM, ADC	UART, ADC, GPIO, USB, PWM, I2C, SPI, I2S
Supplied Contents	-	Board(s)
Type	-	Transceiver, 802.11 a/b/g/n (Wi-Fi, WiFi, WLAN), Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN)
Utilized IC / Part	ESP32-S2	ESP32-S2, ESP32-S2R2, ESP32-S2FN4R2, ESP32-S2FH4
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	2.8 V	2.8 - 3 V

ESP32-S2 Series

RF TXRX MODULE WIFI U.FL SMD

Part	Protocol	RF Family/Standard	Operating Temperature [Max]	Operating Temperature [Min]	Utilized IC / Part	Antenna Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Transmitting [Max]	Current - Transmitting [Min]	Serial Interfaces	Data Rate	Current - Receiving [Min]	Current - Receiving [Max]	Power - Output	Sensitivity	Package / Case	Frequency	Mounting Type	Memory Size	Type	Supplied Contents	Frequency [Max]	Frequency [Min]	Memory Size [custom]	Memory Size [custom]	Memory Size [custom]
Espressif Systems ESP32-S2-WROVER-I(M22S2H3216UH3Q0)	802.11b/g/n	WiFi	105 °C	-40 °C	ESP32-S2	Antenna Not Included, U.FL	2.8 V	3.6 V	310 mA	160 mA	ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB	150 Mbps	63 mA	68 mA	19.5 dBm	-97 dBm	56-VFQFN Exposed Pad	2.4 GHz	Surface Mount
Espressif Systems ESP32-S2-SOLO-U-N4R2	802.11b/g/n	WiFi	85 °C	-40 °C	ESP32-S2R2	Antenna Not Included, U.FL	3 V	3.6 V	310 mA	165 mA	ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB	150 Mbps			19.5 dBm	-97 dBm	40-SMD Module	2.4 GHz	Surface Mount	2 MB, 4 MB, 128 kB, 336 kB
Espressif Systems ESP32-S2-DEVKITM-1U-N4R2																		2.4 GHz			802.11 a/b/g/n (Wi-Fi, WiFi, WLAN), Transceiver	Board(s)
Espressif Systems ESP32-S2-DEVKITC-1U-N8R2																		2.4 GHz			802.11 a/b/g/n (Wi-Fi, WiFi, WLAN), Transceiver	Board(s)
Espressif Systems ESP32-S2-WROOM(M22S2H3200PH3Q0)	802.11b/g/n	WiFi	105 °C	-40 °C	ESP32-S2	PCB Trace	2.8 V	3.6 V	310 mA	160 mA	ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB	150 Mbps	63 mA	68 mA	19.5 dBm	-97 dBm	56-VFQFN Exposed Pad	2.4 GHz	Surface Mount
Espressif Systems ESP32-S2-MINI-1U-N4	802.11b/g/n	WiFi	85 °C	-40 °C	ESP32-S2	Antenna Not Included, U.FL	3 V	3.6 V	310 mA	160 mA	ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB	150 Mbps	63 mA	68 mA	19.5 dBm	-97 dBm			Surface Mount				2.484 GHz	2.412 GHz
Espressif Systems ESP32-S2-SOLO-2U-N4	802.11b/g/n	WiFi	85 °C	-40 °C	ESP32-S2	Antenna Not Included, U.FL	3 V	3.6 V	310 mA	165 mA	ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB	150 Mbps			19.5 dBm	-97 dBm	41-SMD Module	2.4 GHz	Surface Mount						4 MB	336 kB	128 kB
Espressif Systems ESP32-S2FR-01	802.11b/g/n	WiFi	125 ¯C	-40 °C	ESP32-S2	Antenna Not Included	2.8 V	3.6 V	310 mA	160 mA	ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB	150 Mbps	63 mA	68 mA	19.5 dBm	-97 dBm	56-VFQFN Exposed Pad	2.4 GHz	Surface Mount
Espressif Systems ESP32-S2-WROOM-I(M22S2H3200UH3Q0)	802.11b/g/n	WiFi	105 °C	-40 °C	ESP32-S2	Antenna Not Included, U.FL	2.8 V	3.6 V	310 mA	160 mA	ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB	150 Mbps	63 mA	68 mA	19.5 dBm	-97 dBm	56-VFQFN Exposed Pad	2.4 GHz	Surface Mount
Espressif Systems ESP32-S2-DEVKITM-1-N4R2																		2.4 GHz			802.11 a/b/g/n (Wi-Fi, WiFi, WLAN), Transceiver	Board(s)
