1106408-2
ActiveTE Connectivity AMP Connectors

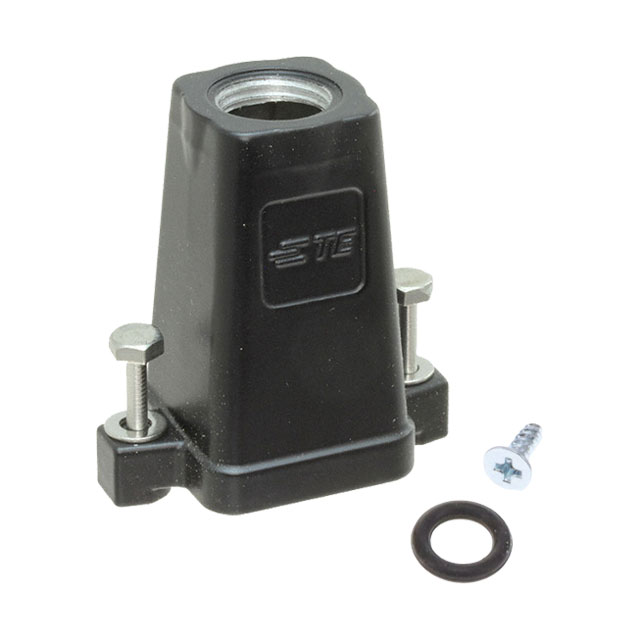

CONN HOOD TOP ENTRY SIZE 1 M16
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1106408-2
ActiveTE Connectivity AMP Connectors
CONN HOOD TOP ENTRY SIZE 1 M16
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1106408-2 |
|---|---|
| Connector Type | Hood |
| Housing Color | Black |
| Housing Finish | Corrosion Coating |
| Housing Material | Aluminum Alloy |
| Ingress Protection | IP68, IP69K |
| Lock Location | Screw Locks on Hood |
| Size | 1 Gallon |
| Size / Dimension [x] | 51 mm |
| Size / Dimension [x] | 2.008 in |
| Size / Dimension [y] | 1.26 in |
| Size / Dimension [y] | 32 mm |
| Size / Dimension [z] | 2.217 in |
| Size / Dimension [z] | 56.3 mm |
| Style | Top Entry |
| Thread Size | M16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 80 | $ 87.71 | |
1106408 Series
CONN HOOD TOP ENTRY SIZE 1 M16
| Part | Ingress Protection | Housing Material | Style | Size | Thread Size | Housing Finish | Connector Type | Lock Location | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1106408-2 | IP68, IP69K | Aluminum Alloy | Top Entry | 1 Gallon | M16 | Corrosion Coating | Hood | Screw Locks on Hood | 1.26 in | 32 mm | 2.217 in | 56.3 mm | 51 mm | 2.008 in | Black |
Description
General part information
1106408 Series
Hood Connector Top Entry M16 1 IP68/IP69K - Dust Tight, Water Resistant, Waterproof
