Phoenix Contact

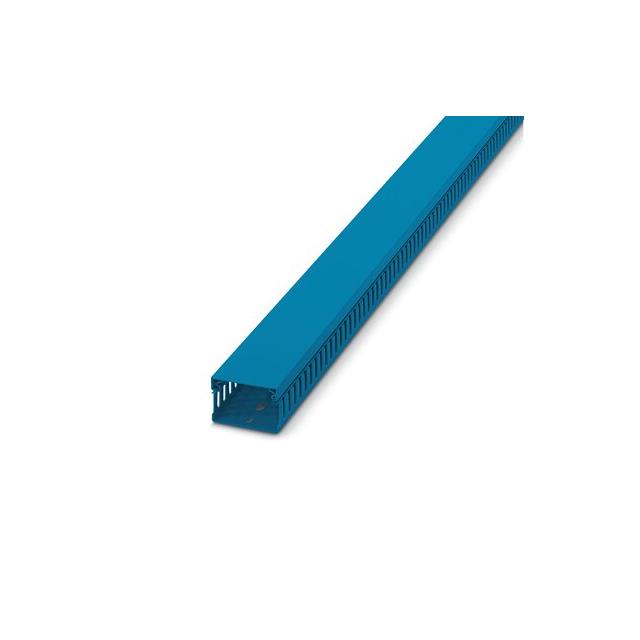

WIRE DUCT SOLID 2PC RIVET 6.56'

Search across all available documentation for this part.

Active

Phoenix Contact

WIRE DUCT SOLID 2PC RIVET 6.56'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3240594	CD-HF 60 Series

Color	Blue	Blue, Gray
Features	Separate Snap in Lid (Included)	Separate Snap in Lid (Included)
Height	-	80 mm
Height	-	3.15 in
Height [z]	1.575 in	1.575 - 3.937 in
Height [z]	40 mm	40 - 100 mm
Length [x]	2 m	2 m
Length [x]	6.56 ft	6.56 ft
Material	PC/ABS, Halogen Free	PC/ABS, Halogen Free
Mounting Type	Rivet	Rivet
Width [x]	60 mm	60 mm
Width [x]	2.362 in	2.362 in
Wire Duct Type	2 Piece	2 Piece
Wire Duct Type	Solid (Raceway)	Solid (Raceway)

WIRE DUCT SOLID 2PC RIVET 6.56'

Part	Height [z]	Height [z]	Width [x]	Width [x]	Length [x]	Length [x]	Mounting Type	Features	Wire Duct Type	Wire Duct Type	Material	Color	Height [diameter]	Height [diameter]
Phoenix Contact 3240594	1.575 in	40 mm	60 mm	2.362 in	2 m	6.56 ft	Rivet	Separate Snap in Lid (Included)	2 Piece	Solid (Raceway)	PC/ABS, Halogen Free	Blue
Phoenix Contact 3240597	3.937 in	100 mm	60 mm	2.362 in	2 m	6.56 ft	Rivet	Separate Snap in Lid (Included)	2 Piece	Solid (Raceway)	PC/ABS, Halogen Free	Blue
Phoenix Contact 3240354			60 mm	2.362 in	2 m	6.56 ft	Rivet	Separate Snap in Lid (Included)	2 Piece	Solid (Raceway)	PC/ABS, Halogen Free	Gray	80 mm	3.15 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Wire Duct Blue Solid (Raceway), 2 Piece Rivet 6.56' (2.00m)
