AN820001
ActiveZF Electronics
SENSOR ANGLE 180DEG CONNECTOR
AN820001
ActiveZF Electronics
SENSOR ANGLE 180DEG CONNECTOR
Description
General part information
AN820001

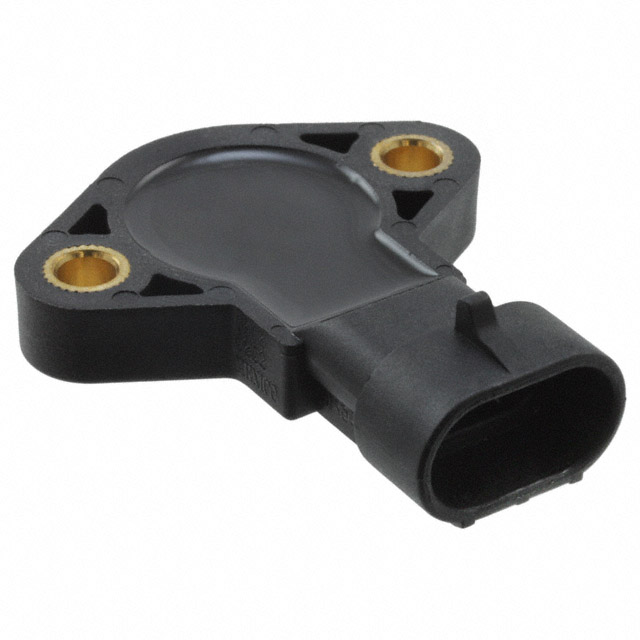

Hall Effect Sensor Angle External Magnet, Not Included Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | AN820001 |
|---|---|
| Actuator Type | Not Included, External Magnet |
| For Measuring | Angle |
| Linearity Tolerance | 3.5 % |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Analog Voltage |
| Output Signal | Clockwise Increase |
| Package / Case | Box with Connector |
| Rotation Angle - Electrical, Mechanical (Maximum) | 180 ° |
| Rotation Angle - Electrical, Mechanical (Minimum) | 0 ° |
| Rotation Angle - Electrical, Mechanical (Mode) | Continuous |
| Technology | Hall Effect |
| Termination Style | Connector |
| Voltage - Supply | 5 VDC |
