Description
General part information
1420BT

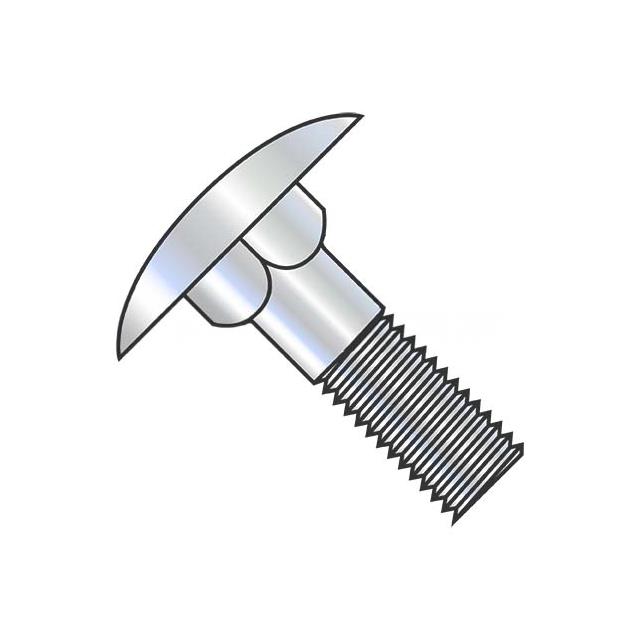

1/4"-20 Round Head Step Bolt Drive Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 1420BT |
|---|---|
| Features | Wide |
| Head Diameter | 0.829 in |
| Head Height | 0.135 in |
| Length - Below Head | 1.25 in |
| Length - Overall | 1.385 in |
| Material | Steel |
| Plating | Zinc |
| Screw Head Type | Round Head |
| Thread Pitch (TPI) | 20 TPI |
| Thread Size (Nominal) | 0.25 in |
| Type | Step Bolt |
