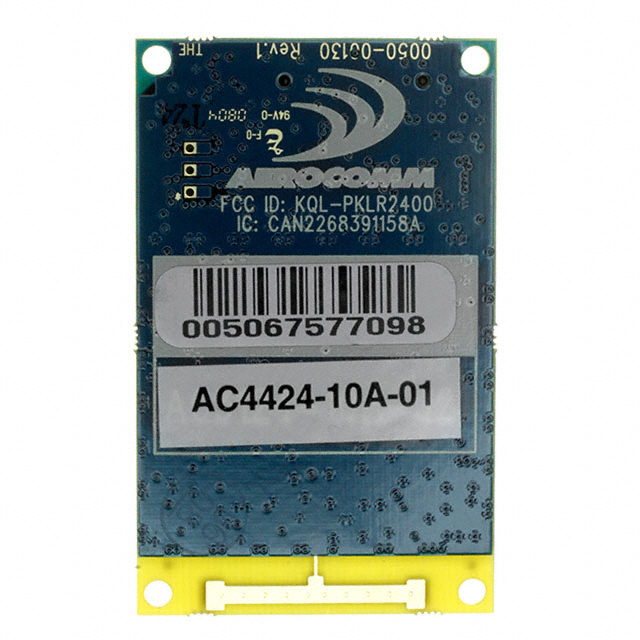

AC4424-10A
ObsoleteEzurio LLC
RF TXRX MOD ISM>1GHZ CHIP CHAS
AC4424-10A
ObsoleteEzurio LLC
RF TXRX MOD ISM>1GHZ CHIP CHAS
Description
General part information
AC4424-10A
General ISM > 1GHz Transceiver Module 2.4GHz Integrated, Chip Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | AC4424-10A |
|---|---|
| Antenna Type | Chip, Integrated |
| Current - Receiving | 85 mA |
| Current - Transmitting (Max) | 140 mA |
| Current - Transmitting (Min) | 90 mA |
| Data Rate | 288 kbps |
| Frequency | 2.4 GHz |
| Modulation | FSK, FHSS |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Power - Output | 10 dBm |
| RF Family/Standard | General ISM > 1GHz |
| Sensitivity | -90 dBm |
| Voltage - Supply | 5 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
