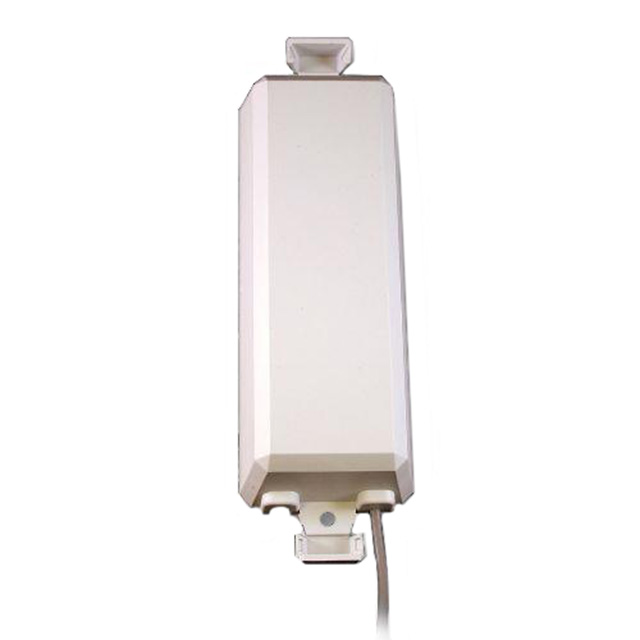

PRO-OS-297

Obsolete

Abracon LLC

RF ANT 434/892MHZ CAB CHAS 1.5M

Search across all available documentation for this part.

Obsolete

Abracon LLC

RF ANT 434/892MHZ CAB CHAS 1.5M

Technical Specifications

Parameters and characteristics commom to parts in this series

RF ANT 434/892MHZ CAB CHAS 1.5M

Part	Return Loss	Frequency (Center/Band)	Height (Max)	Height (Max) [Max] [z]	Features	Features	Frequency Range [Min]	Frequency Range [Max]	Frequency Range	Number of Bands	Applications	Mounting Type	RF Family/Standard	Gain
Abracon LLC PRO-OS-297	-7 dB	1.85 GHz, 2.1 GHz, 434 MHz, 892 MHz	26 mm	1.024 in	1.5 m	Cable	1.71 GHz, 2.11 GHz, 863 MHz	1.99 GHz, 2.17 GHz, 960 MHz	434 MHz	6	GSM, UMTS	Chassis Mount	Cellular	5.5 dBi
Abracon LLC PRO-OS-291	-7 dB	1.85 GHz, 2.1 GHz, 434 MHz, 892 MHz	26 mm	1.024 in	3 m	Cable	1.71 GHz, 2.11 GHz, 863 MHz	1.99 GHz, 2.17 GHz, 960 MHz	434 MHz	6	GSM, UMTS	Chassis Mount	Cellular	5.5 dBi

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

434MHz, 892MHz, 1.85GHz, 2.1GHz GSM, UMTS RF Antenna 434MHz, 863MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 2.11GHz ~ 2.17GHz 5.5dBi SMA Male Chassis Mount

Technical documentation and resources

No documents available
