1786187

Active

Phoenix Contact

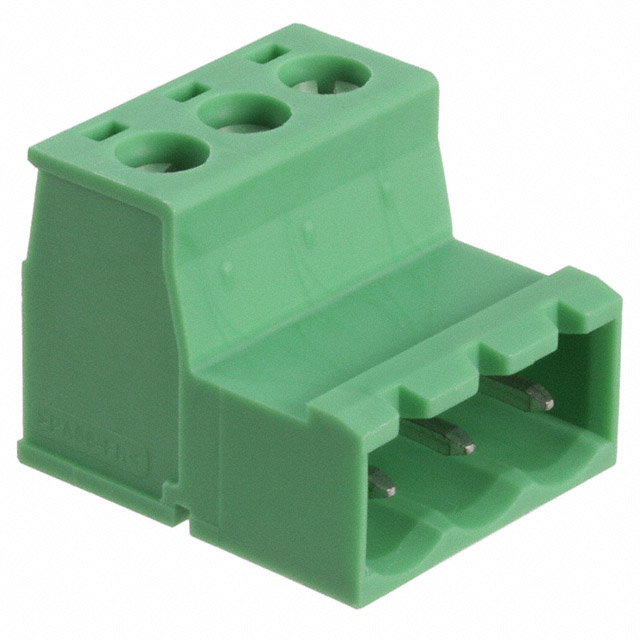

PLUGGABLE TERMINAL BLOCK, INVERTED, 5.08 MM, 3 POSITIONS, 24 AWG, 12 AWG, 2.5 MM², SCREW

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCK, INVERTED, 5.08 MM, 3 POSITIONS, 24 AWG, 12 AWG, 2.5 MM², SCREW

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1786187	IC Series

Color	Green	Green
Contact Mating Finish	Tin	Tin
Current - IEC	12 A	12 A
Current - UL	10 A	10 A
Features	-	Mating Flange
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Insulation Height	0.591 in	0.591 in
Insulation Height	15 mm	15 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Pitch [x]	0.2 in	0.2 in
Pitch [x]	5.08 mm	5.08 mm
Positions Per Level	3	3
Screw Size	M3	M3
Termination Style	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp
Torque - Screw [Max]	0.6 Nm	0.6 Nm
Torque - Screw [Max]	5.3 Lb-In	5.3 Lb-In
Torque - Screw [Min]	4.4 Lb-In	4.4 Lb-In
Torque - Screw [Min]	0.5 Nm	0.5 Nm
Voltage - IEC	630 V	630 V
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	30 AWG	30 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	12 AWG
Wire Gauge or Range - mm˛	-	0.2 mm˛
Wire Gauge or Range - mm˛	-	2.5 mm˛
Wire Gauge or Range - mm² [Max]	2.5 mm²	2.5 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²	0.2 mm²
Wire Strip Length	7 mm	7 mm

Pluggable Terminal Blocks 3 Pos 5.08mm Invert Plug 24-12AWG Screw

Part	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Screw Size	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Current - UL	Contact Mating Finish	Wire Strip Length	Housing Material	Pitch [x]	Pitch [x]	Material Flammability Rating	Current - IEC	Insulation Height	Insulation Height	Color	Positions Per Level	Voltage - UL	Termination Style	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Voltage - IEC	Number of Levels	Mounting Type	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Features
Phoenix Contact 1786187	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	M3	0.2 mm²	2.5 mm²	10 A	Tin	7 mm	Polyamide (PA), Nylon	0.2 in	5.08 mm	UL94 V-0	12 A	0.591 in	15 mm	Green	3	300 V	Screw - Rising Cage Clamp	30 AWG	12 AWG	630 V	1	Free Hanging (In-Line)
Phoenix Contact 1825323	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	M3			10 A	Tin	7 mm	Polyamide (PA), Nylon	0.2 in	5.08 mm	UL94 V-0	12 A	0.591 in	15 mm	Green	3	300 V	Screw - Rising Cage Clamp	30 AWG	12 AWG	630 V	1	Free Hanging (In-Line)	0.2 mm˛	2.5 mm˛	Mating Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pluggable Terminal Blocks 3 Pos 5.08mm Invert Plug 24-12AWG Screw
