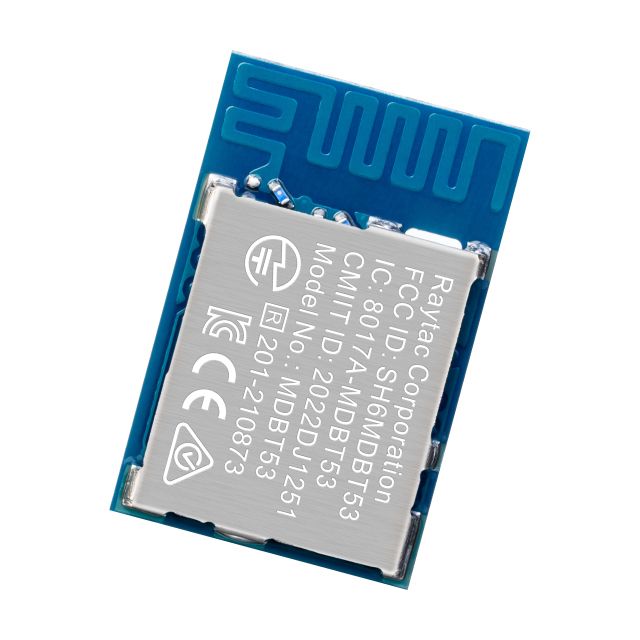

MDBT53-P1M

Active

Raytac

RF TXRX MOD 802.15.4 BT TH SMD

Search across all available documentation for this part.

Active

Raytac

RF TXRX MOD 802.15.4 BT TH SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MDBT53-P1M	MDBT53 Series

Antenna Type	PCB Trace	PCB Trace, Chip, Antenna Not Included, U.FL
Current - Receiving [Max]	7.9 mA	7.9 mA
Current - Receiving [Min]	2.7 mA	2.7 mA
Current - Transmitting [Max]	11.3 mA	11.3 mA
Current - Transmitting [Min]	1.5 mA	1.5 mA
Data Rate	2 Mbps	2 Mbps
Frequency	2.4 GHz	2.4 GHz
Memory Size [custom]	512 kB	512 kB
Memory Size [custom]	1 MB	1 MB
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Power - Output	3 dBm	3 dBm
Protocol	ANT+, Zigbee®, Bluetooth v5.4, Thread	ANT+, Zigbee®, Bluetooth v5.4, Thread
RF Family/Standard	Bluetooth, 802.15.4	Bluetooth, 802.15.4
Sensitivity	-104 dBm	-104 dBm
Serial Interfaces	UART, ADC, GPIO, USB, PWM, I2C, SPI, I2S	UART, ADC, GPIO, USB, PWM, I2C, SPI, I2S
Utilized IC / Part	nRF5340	nRF5340
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	1.7 V	1.7 V

RF TXRX MOD 802.15.4 BT TH SMD

Part	Protocol	Voltage - Supply [Max]	Voltage - Supply [Min]	Serial Interfaces	Mounting Type	Data Rate	Antenna Type	Power - Output	Operating Temperature [Min]	Operating Temperature [Max]	Utilized IC / Part	RF Family/Standard	Frequency	Current - Transmitting [Min]	Current - Transmitting [Max]	Current - Receiving [Max]	Current - Receiving [Min]	Memory Size [custom]	Memory Size [custom]	Sensitivity
Raytac MDBT53-P1M	ANT+, Bluetooth v5.4, Thread, Zigbee®	5.5 V	1.7 V	ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB	Surface Mount	2 Mbps	PCB Trace	3 dBm	-40 °C	105 ░C	nRF5340	802.15.4, Bluetooth	2.4 GHz	1.5 mA	11.3 mA	7.9 mA	2.7 mA	512 kB	1 MB	-104 dBm
Raytac MDBT53-1M	ANT+, Bluetooth v5.4, Thread, Zigbee®	5.5 V	1.7 V	ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB	Surface Mount	2 Mbps	Chip	3 dBm	-40 °C	105 ░C	nRF5340	802.15.4, Bluetooth	2.4 GHz	1.5 mA	11.3 mA	7.9 mA	2.7 mA	512 kB	1 MB	-104 dBm
Raytac MDBT53-U1M	ANT+, Bluetooth v5.4, Thread, Zigbee®	5.5 V	1.7 V	ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB	Surface Mount	2 Mbps	Antenna Not Included, U.FL	3 dBm	-40 °C	105 ░C	nRF5340	802.15.4, Bluetooth	2.4 GHz	1.5 mA	11.3 mA	7.9 mA	2.7 mA	512 kB	1 MB	-104 dBm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

802.15.4, Bluetooth ANT+, Bluetooth v5.4, Thread, Zigbee® Transceiver Module 2.4GHz PCB Trace Surface Mount
