42R34-3121-150

Active

Power Dynamics, Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

Power Dynamics, Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	42R34-3121-150

Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Fuse Holder, Drawer	Fuse Holder
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	45 mm
Panel Cutout Dimensions [y]	20 mm
Termination	Solder

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Fuse Holder, Drawer	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Mounting Type	Connector Style	Material Flammability Rating	Approval Agency	Termination	Connector Type
Power Dynamics, Inc. 42R34-3121-150	Fuse Holder	45 mm	20 mm	Panel Mount, Snap-In	IEC 320-C14	UL94 V-0	CSA, UL, VDE	Solder	Receptacle, Male Blades - Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

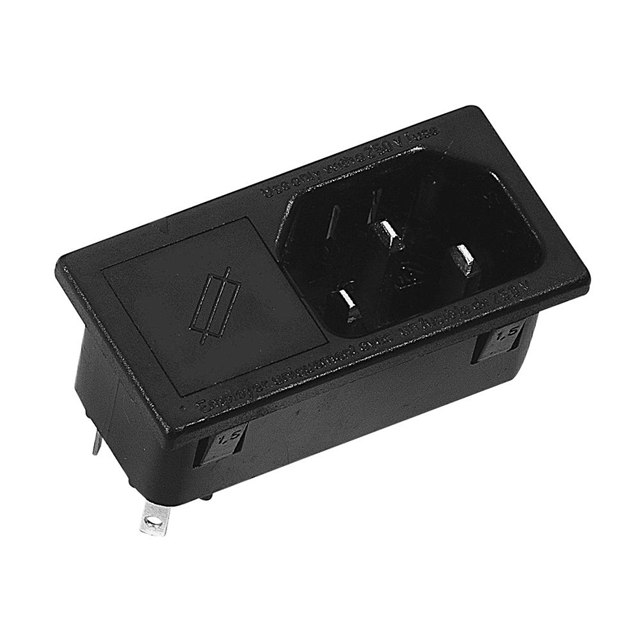

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In

Technical documentation and resources
