11TS15-6
ActiveHoneywell Sensing and Productivity Solutions

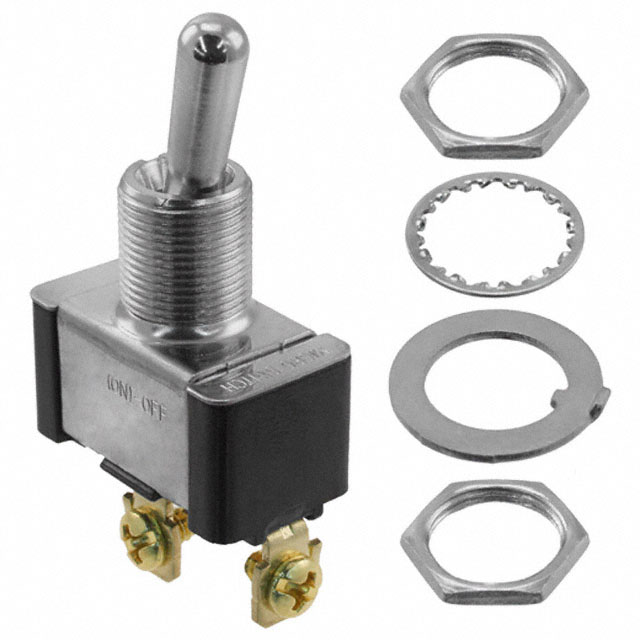

SWITCH TOGGLE SPST-NO 20A 125V
Deep-Dive with AI
Search across all available documentation for this part.
11TS15-6
ActiveHoneywell Sensing and Productivity Solutions
SWITCH TOGGLE SPST-NO 20A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 11TS15-6 | 11TS1 Series |
|---|---|---|
| Actuator Length [x] | 16.51 mm | 16.51 mm |
| Actuator Material | Nickel Plated | Nickel Plated |
| Actuator Type | Standard Round | Standard Round |
| Bushing Thread | 15/32-32 | 15/32-32 |
| Circuit | SPST-NO | SPST-NO, SPDT |
| Current Rating (Amps) | 20 A | 20 A |
| Illumination | Non-Illuminated | Non-Illuminated |
| Operating Temperature [Max] | 71 °C | 71 °C |
| Operating Temperature [Min] | -54 °C | -54 °C |
| Panel Cutout Dimensions [diameter] | 12.4 mm | 12.4 mm |
| Switch Function | Off-Mom | Off-Mom, On-On, Mom-Off-Mom, On-Mom |
| Termination Style | Screw Terminal | Screw Terminal, Solder Lug |
| Voltage Rating - AC | 125 V | 125 V |
11TS1 Series
SWITCH TOGGLE SPST-NO 20A 125V
| Part | Voltage Rating - AC | Actuator Length [x] | Actuator Material | Illumination | Circuit | Termination Style | Panel Cutout Dimensions [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Bushing Thread | Actuator Type | Switch Function | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions 11TS15-6 | 125 V | 16.51 mm | Nickel Plated | Non-Illuminated | SPST-NO | Screw Terminal | 12.4 mm | -54 °C | 71 °C | 15/32-32 | Standard Round | Off-Mom | 20 A |
Honeywell Sensing and Productivity Solutions 11TS115-3 | 125 V | 16.51 mm | Nickel Plated | Non-Illuminated | SPDT | Solder Lug | 12.4 mm | -54 °C | 71 °C | 15/32-32 | Standard Round | On-On | 20 A |
Honeywell Sensing and Productivity Solutions 11TS15-7 | 125 V | 16.51 mm | Nickel Plated | Non-Illuminated | SPDT | Screw Terminal | 12.4 mm | -54 °C | 71 °C | 15/32-32 | Standard Round | Mom-Off-Mom | 20 A |
Honeywell Sensing and Productivity Solutions 11TS15-8 | 125 V | 16.51 mm | Nickel Plated | Non-Illuminated | SPDT | Screw Terminal | 12.4 mm | -54 °C | 71 °C | 15/32-32 | Standard Round | On-Mom | 20 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
11TS1 Series
Toggle Switch SPST-NO Panel Mount
