H181610H-6P-WHT
ActiveIntegra Enclosures
ENCLOSURE PLAS 18.91"L X 16.91"W
H181610H-6P-WHT
ActiveIntegra Enclosures
ENCLOSURE PLAS 18.91"L X 16.91"W
Description
General part information
H181610H-6P-WHT

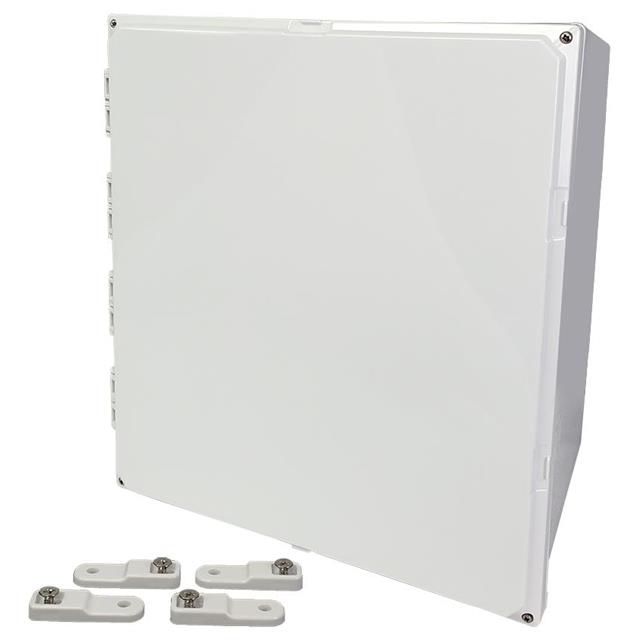

Enclosure Plastic, Polycarbonate (PC) White, Opaque Cover/Door Hinged Door, Lid 18.910" L x 16.910" W (480.31mm x 429.51mm) X 11.500" (292.10mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | H181610H-6P-WHT |
|---|---|
| Area (L x W) | 288 in², 320 in² |
| Color | Opaque Cover/Door, White |
| Container Type | Enclosure |
| Design | Hinged Door, Cover Included, Lid |
| Features | Mounting Brackets |
| Height | 10 in, 11.5 in |
| Material | Polycarbonate (PC), Plastic |
| Material Flammability Rating | UL94 V-0, UL94 5VA |
| Ratings | 12, 4X, IP67, IP66, 2, 3, 6P, 6, 5, NEMA 1, IP68, 4, IP65, 3R, 13, NEMA 4X, NEMA 6P |
| Size / Dimension Length | 18 in, 18.91 in |
| Size / Dimension Width | 16 in, 16.91 in |
| Thickness | 0.232 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
