Description
General part information
173109 Series

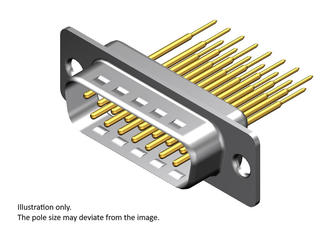

FCT Standard-Density D-Sub Connector, Male, Straight, PCB Through Hole, 10.30mm Tail Length, Gold Plating, 200 Mating Cycles, 6.30mm #4-40 Front Spacer, 6.50mm M3 Rear Spacer, 15 Circuits, White Insulator
Technical Specifications
Parameters and characteristics for this part
| Specification | 1731090870 |
|---|---|
| Color | White |
| Connector Layout | DE, E |
| Connector Style | D-Sub |
| Connector Type | Male Pins, Plug |
| Contact Finish | Gold |
| Contact Form | Machined |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating | 7.5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Features | Grounding Indents |
| Finish | Tin Plated |
| Flange Feature | Shell (Unthreaded), Housing |
| Ingress Protection | IP20 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Primary Material | Metal |
| Shell Material | Steel |
| Shell Size | 1 |
| Termination | Solder |
