Description
General part information

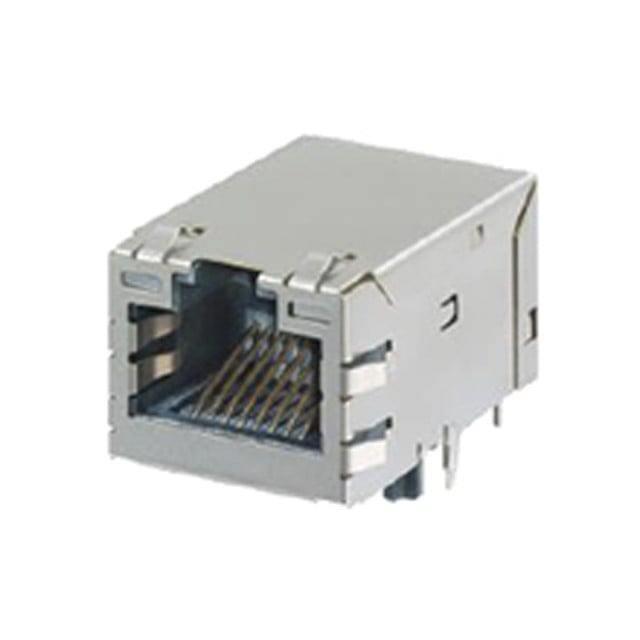

0934635205
CONN JACK 1PORT PCB
Technical Specifications
Parameters and characteristics for this part
| Specification | 0934635205 |
|---|---|
| Applications | AutoMDIX, 10/100 Base-T |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Features | Board Guide, Solder Retention |
| Height Above Board | 0.555 in |
| LED Color | Yellow, Green - Green |
| Mounting Type | Through Hole |
| Number of Cores per Jack | 4 |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation Angle | 90 ° |
| Orientation Direction | Right |
| Shielding | Shielded |
| Tab Direction | Up |
| Termination | Solder |
