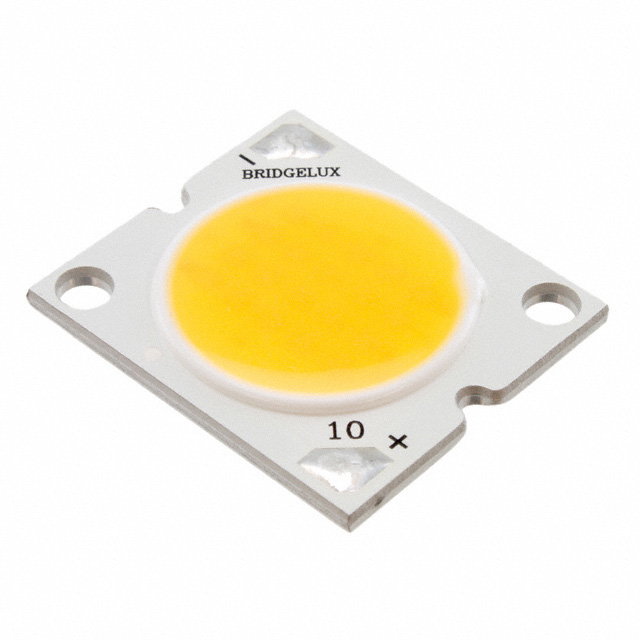

BXRA-35E1200-B-00

Obsolete

BRIDGELUX

LED COB ES WARM WHT RECT 3500K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRA-35E1200-B-00

Obsolete

BRIDGELUX

LED COB ES WARM WHT RECT 3500K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BXRA-35E1200-B-00

CCT (K)	3500 K
Color	White, Warm
Configuration	Rectangle
CRI (Color Rendering Index)	80
Current - Max [Max]	750 mA
Current - Test	500 mA
Height [z]	3 mm
Lens Type	Domed
Lumens/Watt @ Current - Test	108 lm/W
Luminous Flux @ Current/Temperature	1595 lm
Size / Dimension [x]	22.8 mm
Size / Dimension [y]	25.8 mm
Type	Chip On Board (COB)
Viewing Angle	120 °

BXRA-35 Series

Part	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Configuration	Height [z]	Size / Dimension [y]	Size / Dimension [x]	CCT (K)	Type	Current - Max [Max]	Color	Lens Type	Viewing Angle	CRI (Color Rendering Index)	Current - Test	CCT (K)	Voltage - Forward (Vf) (Typ)	Temperature - Test	Size / Dimension [diameter]	Light Emitting Surface (LES) [diameter]
BRIDGELUX BXRA-35E1200-B-03	1595 lm	108 lm/W	Rectangle	3 mm	25.8 mm	22.8 mm	3500 K	Chip On Board (COB)	750 mA	Warm White	Domed	120 °	80	500 mA
BRIDGELUX BXRA-35E0800-B-03	1095 lm	106 lm/W	Rectangle	3 mm	25.8 mm	22.8 mm	3500 K	Chip On Board (COB)	1 A	Warm White	Domed	120 °	80	500 mA
BRIDGELUX BXRA-35E4000-H-00	5340 lm	108 lm/W	Square	3 mm	2 in	45.6 mm	3500 K	Chip On Board (COB)	2.8 A	Warm White	Domed	120 °	80	2.1 A	7-Step MacAdam Ellipse	23.5 V
BRIDGELUX BXRA-35H0740-A-03	585 lm	61 lm/W	Starboard	3 mm			3500 K	Chip On Board (COB)	500 mA	Warm White	Flat	120 °	97	350 mA		27.3 V	85 °C	20.2 mm
BRIDGELUX BXRA-35E2000-B-00	2550 lm	98 lm/W	Rectangle	3 mm	25.8 mm	22.8 mm	3500 K	Chip On Board (COB)	1 A	Warm White	Domed	120 °	80			37 V
BRIDGELUX BXRA-35H4000-H-03	3345 lm	68 lm/W	Rectangle	2.6 mm	45.3 mm	49.5 mm	3500 K	Chip On Board (COB)	3 A	Warm White	Flat	120 °	97	2.1 A		23.5 V	85 °C
BRIDGELUX BXRA-35E2000-B-03	2550 lm	98 lm/W	Rectangle	3 mm	25.8 mm	22.8 mm	3500 K	Chip On Board (COB)	1 A	Warm White	Domed	120 °	80			37 V
BRIDGELUX BXRA-35E3500-F-03	3280 lm	105 lm/W	Square	3 mm	2 in	45.6 mm	3500 K	Chip On Board (COB)	2.1 A	Warm White	Domed	120 °	80	1.75 A		17.9 V
BRIDGELUX BXRA-35E3500-F-00	3280 lm	105 lm/W	Square	3 mm	2 in	45.6 mm	3500 K	Chip On Board (COB)	2.1 A	Warm White	Domed	120 °	80	1.75 A		17.9 V
BRIDGELUX BXRA-35H2000-B-03	1540 lm	61 lm/W	Rectangle	3.5 mm	22.8 mm	25.8 mm	3500 K	Chip On Board (COB)	1 A	Warm White	Domed	120 °	97			36.2 V	85 °C		19.15 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

BXRA-35 Series

LED Lighting COBs Engines Modules Chip On Board (COB) ES White, Warm Rectangle
