12-4S

Active

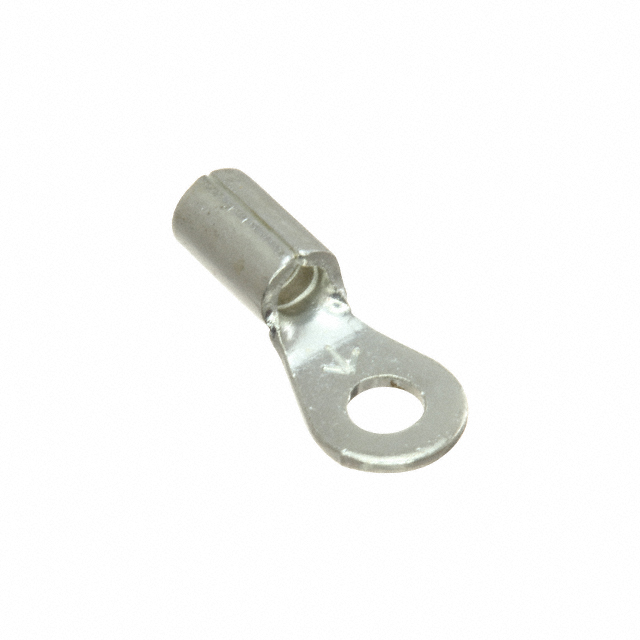

16-14 AWG NON-INSULATED BUTTED SEAM RING TONGUE TERMINAL

Search across all available documentation for this part.

Active

16-14 AWG NON-INSULATED BUTTED SEAM RING TONGUE TERMINAL

Technical Specifications

Parameters and characteristics for this part

16-14 AWG NON-INSULATED BUTTED SEAM RING TONGUE TERMINAL

Part	Termination	Length - Overall [x]	Length - Overall [x]	Contact Material	Thickness	Thickness	Terminal Type	Features	Stud/Tab Size	Contact Finish	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation	Mounting Type
3M 12-4S	Crimp	0.6 in	15.24 mm	Copper, ETP	0.03 in	0.76 mm	Circular	Butted Seam	4 Stud	Tin	0.25 "	6.35 mm	Non-Insulated	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ring Terminal Connector 4 Stud Circular 14-16 AWG Crimp
