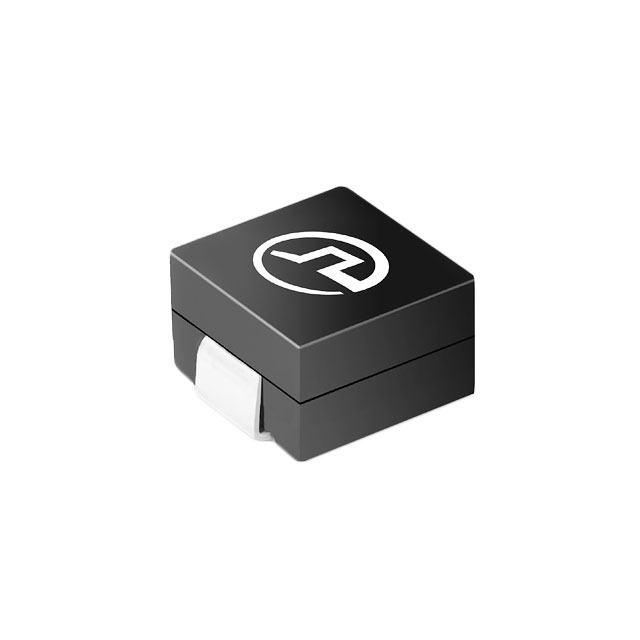

PA3784.121HLT
ActivePulse Electronics
FIXED IND 120NH 70A 0.18MOHM SMD
PA3784.121HLT
ActivePulse Electronics
FIXED IND 120NH 70A 0.18MOHM SMD
Description
General part information
PA3784.121HLT
120 nH Unshielded Inductor 70 A 0.18mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PA3784.121HLT |
|---|---|
| Current - Saturation (Isat) | 94 A |
| Current Rating | 70 A |
| DC Resistance (DCR) | 0.18 mOhm |
| Height - Seated (Max) | 0.315 in |
| Inductance | 120 nH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.394 in |
| Size / Dimension Width | 0.315 in |
| Tolerance | 10 % |
