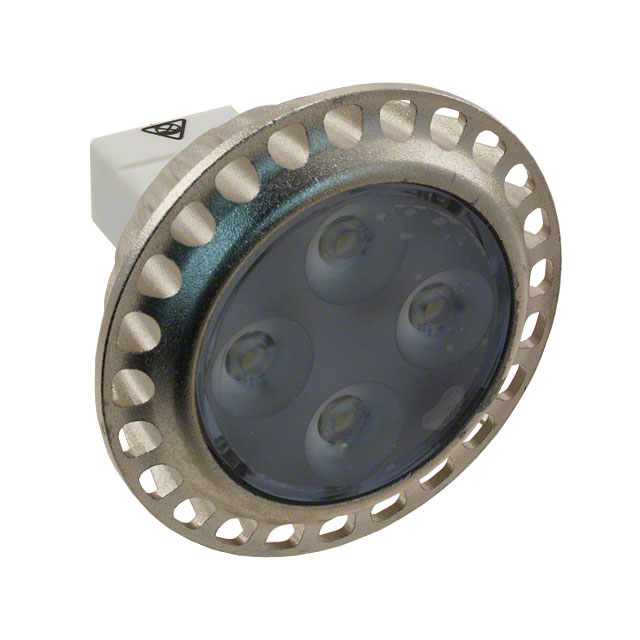

SSP-M16MW012E05
ActiveLumex Opto/Components Inc.
LED HB POWER MODULE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SSP-M16MW012E05
ActiveLumex Opto/Components Inc.
LED HB POWER MODULE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SSP-M16MW012E05 | SSP-M16 Series |
|---|---|---|
| Applications | General Purpose Lighting | General Purpose Lighting |
| Base Type | MR16 | MR16 |
| Color | White, Warm | Cool, White, Warm |
| Configuration | Single | Single |
| Size / Dimension [diameter] | 1.969 in | 1.969 in |
| Size / Dimension [diameter] | 50 mm | 50 mm |
| Size / Dimension [z] | 42.9 mm | 42.9 mm |
| Size / Dimension [z] | 1.689 " | 1.689 " |
| Wavelength | 3000 K | 3000 - 5000 K |
SSP-M16 Series
LED HB POWER MODULE
| Part | Color | Configuration | Size / Dimension [diameter] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [diameter] | Applications | Wavelength | Base Type |
|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. SSP-M16UW012C05 | Cool, White | Single | 1.969 in | 42.9 mm | 1.689 " | 50 mm | General Purpose Lighting | 5000 K | MR16 |
Lumex Opto/Components Inc. SSP-M16MW012E05 | Warm, White | Single | 1.969 in | 42.9 mm | 1.689 " | 50 mm | General Purpose Lighting | 3000 K | MR16 |
Lumex Opto/Components Inc. SSP-M16MW012C05 | Warm, White | Single | 1.969 in | 42.9 mm | 1.689 " | 50 mm | General Purpose Lighting | 3000 K | MR16 |
Lumex Opto/Components Inc. SSP-M16UW012E05 | Cool, White | Single | 1.969 in | 42.9 mm | 1.689 " | 50 mm | General Purpose Lighting | 5000 K | MR16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SSP-M16 Series
LED Lamp Replacement White, Warm MR16 12V AC/DC 1.969" Dia x 1.689" H (50.00mm x 42.90mm)
