Description
General part information

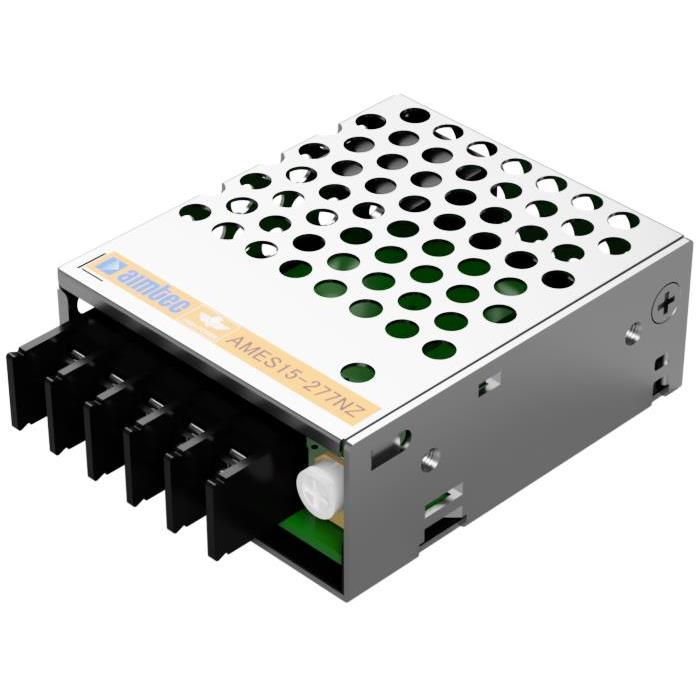

AMES15-24S277NZ-P
Enclosed AC DC Converters 1 Output 24V 85 ~ 305 VAC, 100 ~ 430 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | AMES15-24S277NZ-P |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus |
| Current - Output 1 | 625 mA |
| Efficiency | 83 % |
| Features | DC Input Capable, Universal Input, Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Power (Watts) | 15 W |
| Size / Dimension Height | 0.98 in |
| Size / Dimension Length | 2.56 in |
| Size / Dimension Width | 2.16 in |
| Standard Number | 62368-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 305 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Input (DC) Maximum | 430 V |
| Voltage - Input (DC) Minimum | 100 V |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 24 V |
