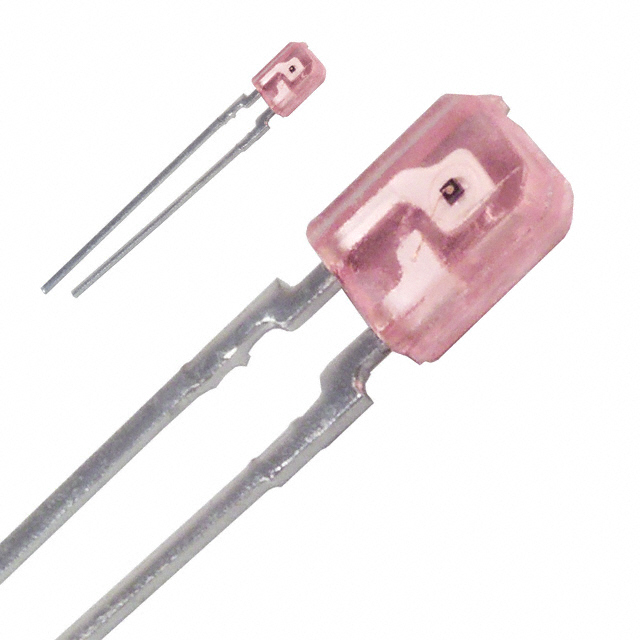

GL4100E0000F
ObsoleteSharp Microelectronics
EMITTER IR 950NM 50MA RADIAL
GL4100E0000F
ObsoleteSharp Microelectronics
EMITTER IR 950NM 50MA RADIAL
Description
General part information
GL4100E0000F
Infrared (IR) Emitter 950nm 1.2V 50mA 180° Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | GL4100E0000F |
|---|---|
| Current - DC Forward (If) (Max) | 50 mA |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Orientation | Side View |
| Package / Case | Radial |
| Type | Infrared (IR) |
| Viewing Angle | 180 ° |
| Voltage - Forward (Vf) (Typ) | 1.2 V |
| Wavelength | 950 nm |
