Description
General part information

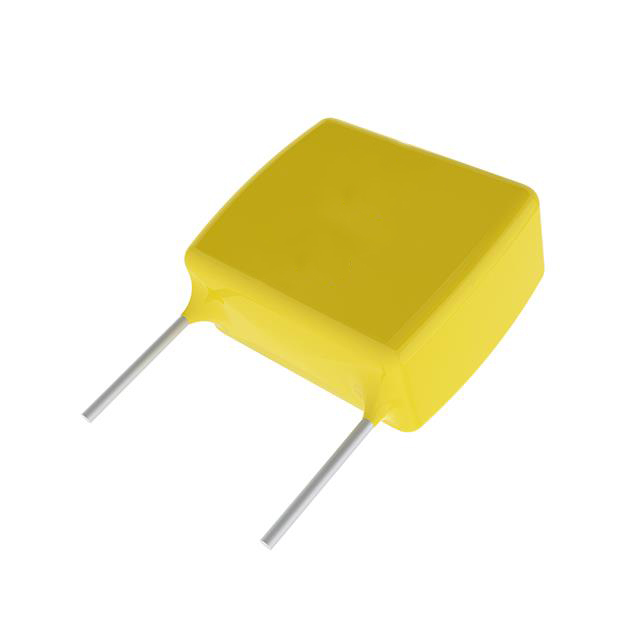

C330C563K2R5TA7301
0.056 µF ±10% 200V Ceramic Capacitor X7R Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | C330C563K2R5TA7301 |
|---|---|
| Applications | Bypass, Decoupling |
| Capacitance | 56 nF |
| Height - Seated (Max) | 0.36 in |
| Lead Spacing | 0.2 in |
| Lead Style | Formed Leads |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.28 in |
| Size / Dimension Width | 0.16 in |
| Temperature Coefficient | X7R |
| Tolerance | 10 % |
| Voltage - Rated | 200 VDC |
