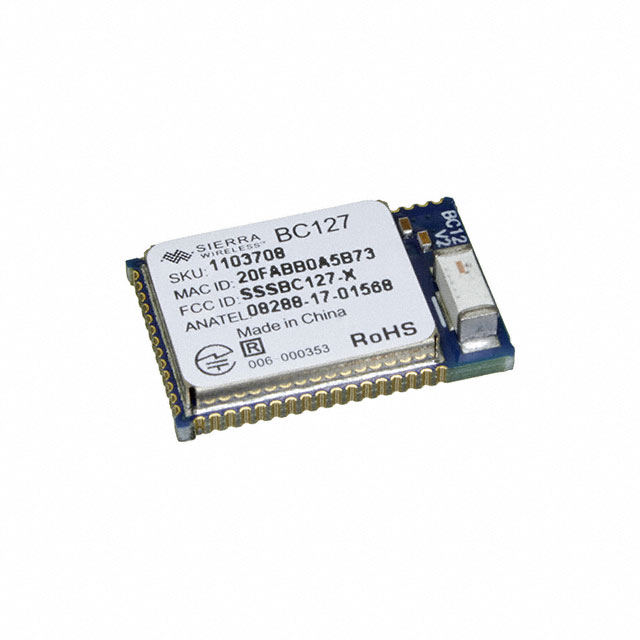

BC127-APTX_1103708

Obsolete

Sierra Wireless

RF TXRX MOD BLUETOOTH CHIP SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BC127-APTX_1103708

Obsolete

Sierra Wireless

RF TXRX MOD BLUETOOTH CHIP SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BC127-APTX_1103708	BC127 Series

Antenna Type	Integrated, Chip	Antenna Not Included, Castellation, Integrated, Chip
Current - Receiving	15 mA	15 mA
Current - Transmitting	15 mA	15 mA
Data Rate	3 Mbps	3 Mbps
For Use With/Related Products	-	BC127, BC127-HD
Frequency	-	2.4 GHz
Frequency [Max]	2.48 GHz	2.48 GHz
Frequency [Min]	2.4 GHz	2.4 GHz
Memory Size	-	16 MB
Modulation	QPSK, GFSK, 8PSK	QPSK, GFSK, 8PSK, DQPSK, DPSK
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Power - Output	10 dBm	10 dBm
Protocol	Bluetooth v4.2	Bluetooth v4.2, Bluetooth v4.0 Dual Mode
RF Family/Standard	Bluetooth	Bluetooth
Sensitivity	-88 dBm	-88 dBm
Supplied Contents	-	Cable(s), Board(s)
Type	-	Transceiver; Bluetooth® Smart Ready 4.x Dual Mode (BLE), Transceiver; Bluetooth® Smart 4.x Low Energy (BLE)
Voltage - Supply [Max]	4.7 V	4.7 V
Voltage - Supply [Min]	3.3 V	3.3 V

BC127 Series

RF TXRX MOD BT CAST SMD

Part	Modulation	Power - Output	Protocol	Operating Temperature [Max]	Operating Temperature [Min]	Sensitivity	Current - Receiving	Package / Case	Antenna Type	Data Rate	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	RF Family/Standard	Frequency [Min]	Frequency [Max]	Current - Transmitting	Type	For Use With/Related Products	Frequency	Supplied Contents	Memory Size
Sierra Wireless BC127-EXT-HD_1103784	8PSK, GFSK, QPSK	10 dBm	Bluetooth v4.2	85 °C	-40 °C	-88 dBm	15 mA	Module	Antenna Not Included, Castellation	3 Mbps	Surface Mount	4.7 V	3.3 V	Bluetooth	2.4 GHz	2.48 GHz	15 mA
Sierra Wireless BC127-HD_1103709	8PSK, GFSK, QPSK	10 dBm	Bluetooth v4.2	85 °C	-40 °C	-88 dBm	15 mA	Module	Integrated, Chip	3 Mbps	Surface Mount	4.7 V	3.3 V	Bluetooth	2.4 GHz	2.48 GHz	15 mA
Sierra Wireless BC127-DISKIT001_6001098																		Transceiver; Bluetooth® Smart Ready 4.x Dual Mode (BLE)	BC127	2.4 GHz	Board(s), Cable(s)
Sierra Wireless BC127-1103383	DPSK, DQPSK, GFSK	10 dBm	Bluetooth v4.0 Dual Mode	85 °C	-40 °C	-88 dBm	15 mA	Module	Integrated, Chip	3 Mbps	Surface Mount	4.7 V	3.3 V	Bluetooth			15 mA			2.4 GHz		16 MB
Sierra Wireless BC127-APTX_1103708	8PSK, GFSK, QPSK	10 dBm	Bluetooth v4.2	85 °C	-40 °C	-88 dBm	15 mA	Module	Integrated, Chip	3 Mbps	Surface Mount	4.7 V	3.3 V	Bluetooth	2.4 GHz	2.48 GHz	15 mA
Sierra Wireless BC127-HD DIS KIT_6001115																		Transceiver; Bluetooth® Smart 4.x Low Energy (BLE)	BC127-HD	2.4 GHz	Board(s)
Sierra Wireless BC127-EXT-APTX_1103783	8PSK, GFSK, QPSK	10 dBm	Bluetooth v4.2	85 °C	-40 °C	-88 dBm	15 mA	Module	Antenna Not Included, Castellation	3 Mbps	Surface Mount	4.7 V	3.3 V	Bluetooth	2.4 GHz	2.48 GHz	15 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

BC127 Series

Bluetooth Bluetooth v4.2 Transceiver Module 2.4GHz ~ 2.48GHz Integrated, Chip Surface Mount

Documents

Technical documentation and resources
